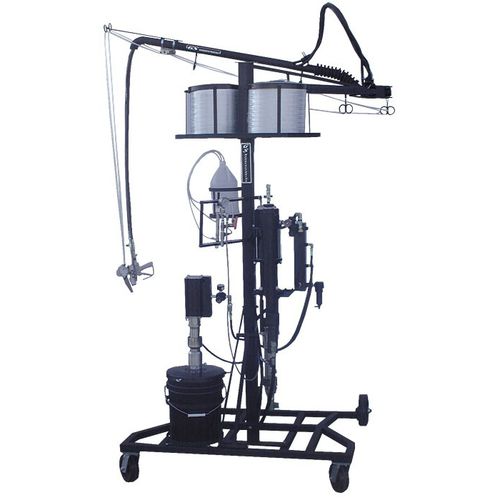

Low-emission chopper and wet out system RC42SF series

low-pressure

The Superflow Fiberglass Chopper System for Open Molding accurately mixes vinylester/polyester resins and MEKP (methyl ethyl ketone peroxide) along with chopped fiberglass. Examples of industries using our equipment are Automotive- after-market parts, truck canopies, large truck parts, camper shells; Marine- boats, personal watercraft; Tank Manufacturing- corrosion, chemical, waste water; Amusement Parks- water slides, rides and rock walls; and Home Building- bath tubs, hot tubs, jacuzzis, swimming pools. Leading edge technology in Non-Atomized resin application Low maintenance Improved skin coats Tangle free ceramic eyelets Heavy duty boom with adjustable spring tension for operator support Stainless steel resin and catalyst slave pumps maintains consistent ratios Internal mix - requires solvent flush pump 2 wheel units for pool resurfacing and On-site jobs Pneumatic 2 stage trigger- dispense resin/catalyst when needed without chop STANDARD COMPONENTS: Cart, mast, boom, roving brakes X2015CC Internal mix X-GUN® RC100-04 Superflow chopper motor (Not included w/Wet-out model) 25 foot hoses 2:1 Solvent flush pump assembly (required on internal mix only) S1000-97 MEKP Slave pump assembly Stainless steel resisn pump SYSTEM SPECIFICATIONS: Output up to 15 lbs/min (6.8 kg/min.) Catalyst percentage .75%-3% by volume Pump ratio 10:1, 11:1 or 22:1 Air consumption 20 CFM Options Heater Additional hose lengths Catalyst flow arm Less cart, less boom- stationary units Roving rack
