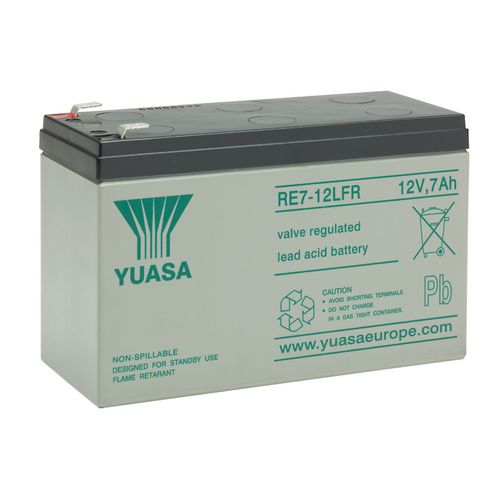

Lead-acid battery RE7-12LFR

12 Vfor electric vehiclesfor automotive applications

Description
Discover the performance of the Yuasa RE battery range, designed to exceed NP series standards with an improved EUROBAT "General Purpose" classification of 6–9 years.

The RE range retains NP features such as excellent recovery from deep discharge, a unique electrolyte suspension system and gas recombination technology, extending battery life. Suitable for a wide range of applications, RE is ideal for light cyclic or standby uses where longevity and reliability are essential. Higher energy density and flexible installation options ensure continuous operation with minimal maintenance.

Key points

• Versatile use: suitable for light cyclic and standby applications.
• Yuasa design life up to 10 years and EUROBAT "General Purpose" classification 6–9 years.
• Excellent recovery after deep discharge.
• AGM technology (microporous glass mat separator) with electrolyte suspension for optimized electrolyte distribution.
• Sealed construction preventing electrolyte leakage: safe and low maintenance (regular tests/inspections recommended).
• Gas recombination technology recombines approximately 99% of gases generated in normal use.
• Valve-regulated design with low-pressure venting for safety under overcharge conditions.
• Can be installed in any orientation (except continuous inverted use).
• Lead-calcium grids for higher energy density and steady power delivery.
• Low self-discharge rate for maintaining charge during long storage periods.
• Optional flame-retardant case options meeting UL94:V0 for enhanced safety.

Applications

• Uninterruptible power supplies (UPS) to maintain equipment during power outages.
• Fire and security systems providing reliable power for critical safety functions.
• Emergency lighting to ensure illumination during outages.

Note
Product specifications are indicative and may vary by manufacturing site. Product details are subject to change without notice.

Characteristics / technical specifications

• Range: RE - VRLA - General Use
• Nominal voltage: 12 V
• Capacity (20 h): 7 Ah
• Length: 151 mm
• Width: 65 mm
• Height: 94 mm
• Terminal type: Faston - 6.35 mm
• Layout: 4
• Container material: ABS (UL94:V0)
• Standard or FR case: FR
• Technology: VRLA (AGM)
• Eurobat life classification: 6 to 9 years
• Yuasa design life at 20 °C: up to 10 years
