AC servomotor ZJY series
380 VcompactIP54

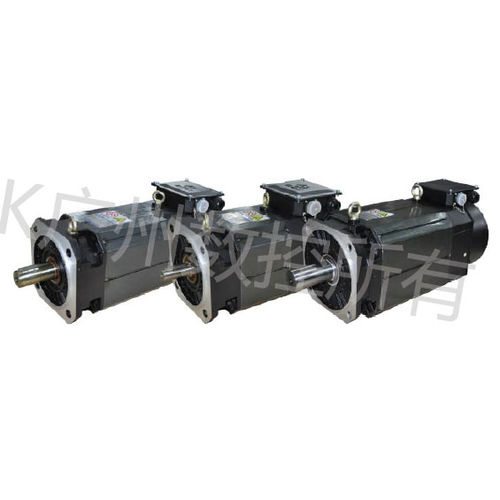

AC servomotor - ZJY series - GSK CNC Equipment Co., LTD - 380 V / compact / IP54
AC servomotor - ZJY series - GSK CNC Equipment Co., LTD - 380 V / compact / IP54
Add to favorites
Compare this product

Characteristics

Type
AC
Voltage
380 V
Configuration
compact
Protection class
IP54
Cooling mechanism
air-cooled
Applications
spindle
Other characteristics
high-power, high-speed, high-precision, low-noise, with built-in encoder
Power

Min.: 1.5 kW
(2.04 hp)

Max.: 18.5 kW
(25.15 hp)

Torque

Min.: 9.5 Nm
(7.00684 ft.lb)

Max.: 118 Nm
(87.032334 ft.lb)

Rotational speed

Min.: 1,000 rpm
(6,283.1853 rad.min-1)

Max.: 10,000 rpm
(62,831.8531 rad.min-1)

Description

Product Feature • Adopts closed-end air-cooled structure, graceful outline and compaclstructure • Adopts optimized electromagneticdesign, low noise, stable operation, high efficiency • Adopts imported high precision bearing and rotor, high precision balanced technique, ensure the stability with in the max. rotate speed, without big vibration and loud noise • Adopts corona-resistance enameled wire, F-level insulation. IP54 protection, ensure the stability of motor, running under the circumstance of -15X>4(rc, or with dust andoil mist • Adopts highspeed and high precision encoder, can be used with high efficiency drivers to realize speed and position control in high precision • Strong overload capacity, running stably with 150% rated power, 30mins;300% rated power, 5mins • Wide speed regulatory range, the highest speed is up to 10OOOr/min • Good impact resistance,long service life,high cost-performance
