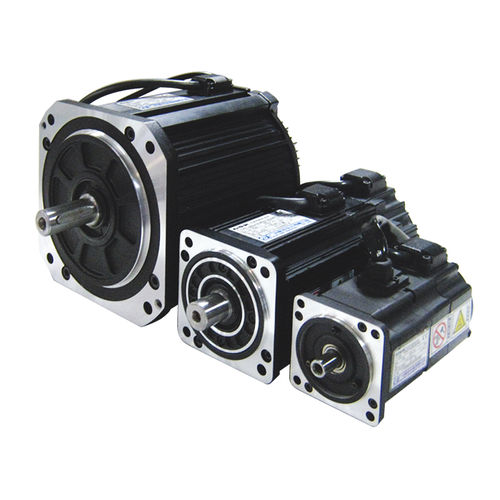

AC servomotor SJTR series
permanent magnetfor roboticswith built-in encoder

AC servomotor
AC servomotor
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Configuration
permanent magnet
Applications
for robotics, with built-in encoder
Other characteristics
high-speed, high-efficiency, high-precision, low-vibration, low-noise, low-speed
Torque

Min.: 0.318 Nm (0.2345 ft.lb)

Max.: 33.8 Nm (24.9296 ft.lb)

Power

Min.: 0.1 kW (0.136 hp)

Max.: 2.5 kW (3.399 hp)

Rotational speed

Min.: 2,000 rpm (12,566.37 rad.min-1)

Max.: 6,000 rpm (37,699.11 rad.min-1)

Description

1.It adopts the optimum electromagnetic design, low noise, stable operation, and high efficiency; 2.It adopts high performance rare-earth permanent magnetism material, perfect low-speed character and strong overloading capacity (3 times); 3.It adopts a 17-bit absolute high-speed and high accuracy photoelectric encoder, which can achieve a high-accuracy control matched with a high-performance drive unit; 4.It adopts an imported high-accuracy bear and rotor with high-precision dynamic technologies to ensure that the motor is stable and reliable, less vibration and low noise when it operates within the high speed range; 5.The motor can be reliably used in -15º-40 º ambient temperature and the dust oil-mist environment; 6.It owns high torque inertial ratio and strong rapid response capacity.
