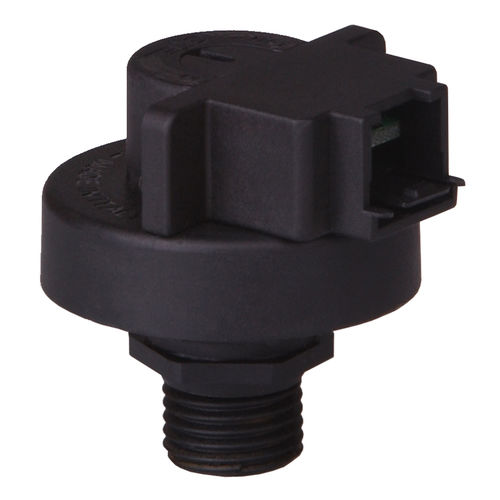

Hall effect pressure transducer T

membranesensitive elementthreaded

Transducer T and TM Series is best suited to the following applications: Heating (wall heaters) Air conditioning systems Boiler systems (steam) Industrial applications Water treatment The development of this transducer, which consists of a Hall sensor, is based on the concept of using a magnet to aect a semiconductor. TM Series development consist of gauge indicator let to check the pressure value without eletric supply. It is constructed in reinforced thermoplastic and sensitive element in AISI 301. Ultrasonic welding system, make the coupling homogeneous and stable for a long time avoiding metal joints or rivets. Costruction Features Plastic Casing - Polyarylamide Solvay (also available as IEC 60695-2-12 GWFI approved materials) Membrane - AISI Seal - EPDM; VITON; SILICONE; NBR; Sensor - Linear programming Connector - RAST 2,5 (AMP duoplug type) Protection Class - IP00 Weight - ∼ 23 grams Approvals EMC 2014/30EU All our products conform to the 2002/95/EC European directive RoHS and REACH.
