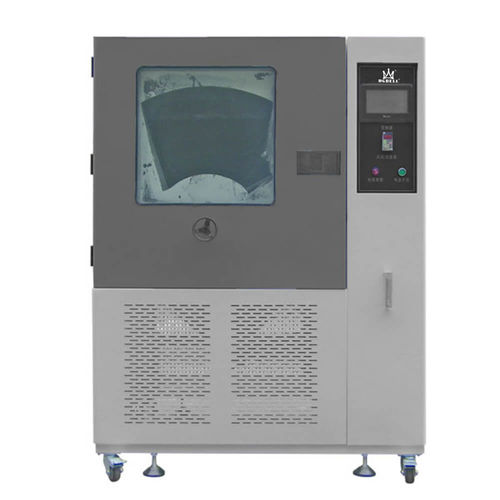

Dust test chamber BE-XR seriesenvironmentalsandfor materials testing machines
Add to favorites
Compare this product
Characteristics
- Test type
- environmental, dust, sand
- Product applications
- for materials testing machines
- Application domain
- for quality control
- Configuration
- mobile
- Options and accessories
- with window
- Other characteristics
- high-capacity
- Power
3,000 W
- Interior length
800 mm, 1,000 mm
(31.5 in, 39.37 in)- Interior height
800 mm, 1,000 mm
(31.5 in, 39.37 in)- Interior depth
800 mm, 1,000 mm
(31.5 in, 39.37 in)- External length
1,400 mm
(55.1 in)- External height
1,600 mm
(62.99 in)- External depth
950 mm
(37.4 in)
Description
Sand and dust test chamber is suitable for all kinds of automotive parts dust-proof, dust resistance test. Test components including automotive lights, instrumentation, electrical cover, switch system, door lock, etc., and test its sealing performance. Besides, it also has view window with illumination.
Description
It is suitable for all kinds of automotive parts dust-proof, dust resistance tests. Test components including automotive lights, instrumentation, electrical cover, switch system, door lock, etc., and test its sealing performance. Besides, it also has a view window with illumination.
Standard compliance:
IEC 60598-1:1999
Performance parameters:
Metal Mesh Diameter: 50um
Screen Stencil Diameter: 75um
Talcum Powder Dosage: 2Kg/m³
Air Velocity: No more than 2m/s
The Talcum Powder Amount 2Kg/m³
Internal Material: SUS 304 stainless steel
External Material: SECC steel plate, powder painted coating
