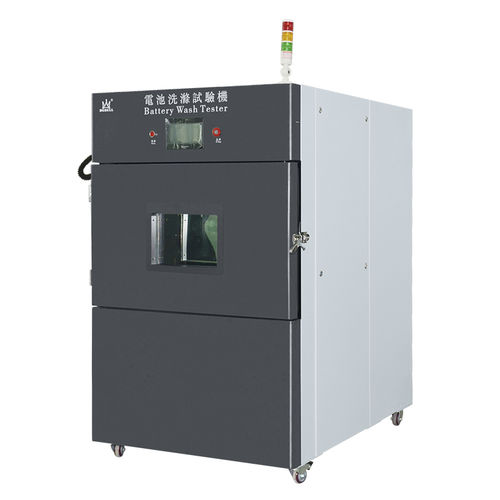

DGBELL’s battery washing test chamber consisting of test chamber and washing chamber under the test chamber. Moreover, it motorized rotary propeller mounted inside of the test chamber and on the internal wall of test chamber, the drying system is mounted. This battery washing tester is designed as a lifting structure chamber which forms a sealed casing when the washing chamber rises to the upper edge of the test chamber. The control panel and water tank are designed on the rack, and the washing chamber is connected to the water tank. Reasonable test chamber structure shortens the test period and improves test accuracy.
Performance parameters:
Instruction: All-in-one structure, install explosion-proof lock + explosion-proof door
Testing Rotary Plate Diameter: 500±10MM
Inner Barrel Diameter: 650MM
Inner Barrel Depth: 550MM
Plate Rotation Speed Range: 1—900rpm/min controllable
Speed Accuracy: 1%
Control System: PLC touch control + Remote control
Control Method: Programmable, fully automatic testing.Returning to origin – adding water – raising – heating – dropping – soaking – stirring – draining – dewatering – de-cylindering – drying – complete.
Servo Motor: Japan Panasonic servo motor
Time Setting: 0-999 hours (Adjustable)
Water Control Method: Automatic water pump
Heating Control System : Heating tube: water temperature control heating and thermostat control heating control separately
Transmission System : Driven by motor, screw drive control lift
Alarm Device : Tri-color warning light
Observation Window : 370X350MM,Three-layers vacuum tempered glass
Internal Material : SUS 316# ,Stainless steel
External Material : 1.5mm thickness Cold plate paint baked coating
