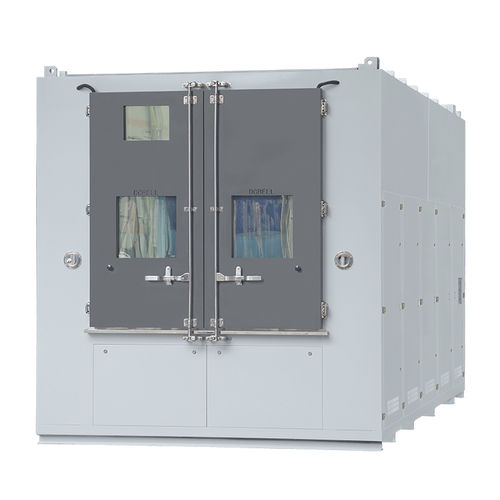

Dust test chamber BE-XR-12M³

environmentalsandfor automobiles

Walk in dust-proof test chamber provide a simulated sand blowing and dusting environment. It can continuous operation for a long time without failure. Application: 1. Provide a simulated sand blowing and dusting environment. 2. Continuous operation for a long time without failure. 3. Make sure that the amount of soot blowing is constant, and the soot blowing speed and soot blowing time are automatically set. 4. It has the functions of dust removal and dehumidification and controlling the temperature and humidity of the internal environment. 5. Make sure the entire test is recyclable. 6. Perfect security protection Technical Parameters: Internal Dimension: W2000 X H2400 X D3000mm Max. Load: ≥1000KG,equipped with sample holder which able to moved on the guide rail Observe window: 5mm tempered glass with a large size 500mm*500mm, sand dust cleaner, and lighting. Internal Material: 1.0mm SUS304# heat resistant and cold resistant stainless steel plate. (Mirror finished). External Material: 1.2mm cool-rolled steel plate with high temperature coating. Temp. Range: RT+10℃～+80℃ (Adjustable) Humidity Range: ≤85%R.H Dust Ingredients: Composed of 100% inorganic minerals, the content of 34%-40% silica (secondary angular structure quartz sand) is 0.2, and the hardness is 7°. 17%-23% is ferric oxide. 26%-32% is three oxidation of two aluminum. The rest are natural impurities. Sand and Dust Particle Composition68% about10um、12% about 10-20um、14% about20-50um、6% about 50-75um. Sand Concentration: 0.177g/m³ , 1.1±0.25g/m³ , 2.2±0.5g/m³ (Optional) Dust Dosage: 2-4kg±7g/m³(can set and display) Blowing Speed: 1～2m/s (Adjustable, can be set and display) Air Velocity: ≤2m/s
