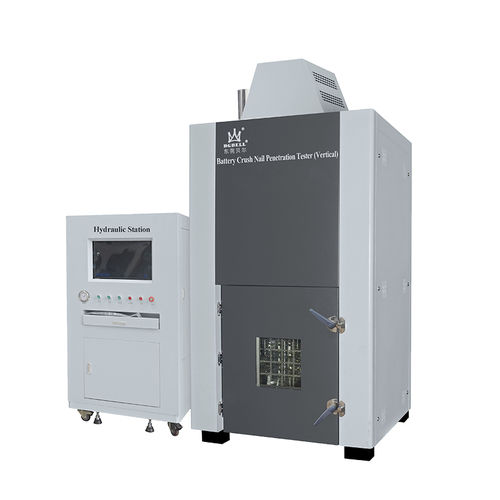

Pressure test machine BE-6047C series

resistancehardnessperformance

Test the battery under certain conditions by the crush and nail penetration to verify the safety performance of the battery. Description Battery Crush Nail Penetration Tester Application DGBELL’s battery crush nail penetration tester is used to simulate the use, transportation, storage, and disposal of various types of batteries under certain temperature conditions when the battery is crushed (such as compacted garbage) or nail penetration, and to judge the battery safety performance. The battery is qualified as no disintegration, no rupture, and no fire. Standard • UL 2580 Technical Parameters Power Supply : AC380V 50HZ Crush speed : 1~400mm/min（Adjustable） Nail Penetration Speed : 1~40mm/s Test Method : Force and displacement (deformation), voltage, or a combination of these three Control Method : Computer remote Control, force, displacement, total voltage or single voltage can be completed independently or combine as control variable ,the test will be stopped when any condition reaches the set value. Crush Accuracy : ±0.5% Nail Penetration Accuracy : ±1mm/s Crush Deformation : 0~100% multi-gears set, multi-layer crush deformation loading available Crush Fixture : Special-shaped crush head （300X150mm）， Flat crush plate ， Arc crush plate （Radius 75mm），fixtures in different size according to different standards Data Acquisition Module : Independent remote collection and isolation ,Multiplex voltage, temperature, current acquisition channel, ensure the data correctly , Acquisition frequency 100HZ
