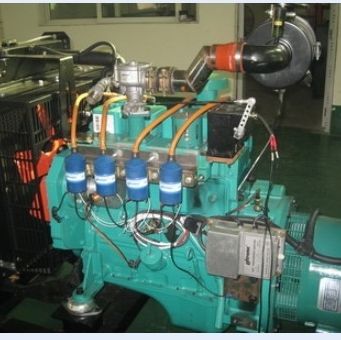

Gas generator set BS
single-phasestationarywater-cooled

gas generator set
gas generator set
Add to favorites
Compare this product


Characteristics

Motor type
gas
Phase
single-phase
Portability
stationary
Cooling system
water-cooled, air-cooled
Power in kVA

40 kVA
(54.38 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)

Description

Product Name:BS 40kVA Gas Generator Set(30kVA-1250kVA) Model No.:BCF30-G Minimum Order:1 Product Abstract: BS 40kVA Gas Generator Specification : Prime power (KW/kVA) 30/40; Standby power(kW/kVA)33/41 ; Rated voltage V) 400/230 ; Frequency (Hz) 50/60 ; Rated speed 1500rpm/1800rpm ; Rated current(A) 54 ; Compression ratio: 11.5:1 ; Displacement(L): 3.9 ; Cyl. arrangement: 4L ; Engine name: Cummins; Engine model: C4L102 ; Alternator name: Faraday ; Alternator model: FD1J-4 ; Ignition system: Altronic ; Automatic controller: Deep Sea or Hassan ; Type Inline, four-stroke, water-cooled, dry-type sleeves (cylinders integrated), high energy ignition, electronic control, equivalent mix than the premixed combustion ; Bore * Stroke (mm) 102*120 ; BS 40kVA Gas Generator is coupled with Cummins engine, Faraday alternator as well as Altronic ignition system. The gas generator includes natural gas, biogas, coal-gas and LPG generator etc. Product Description Our company is a professional manufacture of gas and diesel generator set, all our products are of good quality. Binshi power can produce various gas generator sets, with range of 30kVA-1250kVA, such as natural gas gensets, biogas gensets, coal-gas gensets and LPG gensets. It blongs to new green environmental protection power to substitute those gensets powered by gasoline or diesel in the near future. Natural gas or other flammable gas can be esed well as fuel, which may be turned waste to treasure. Due to the advantage of convenient and safe operation, cost-effectiveness, low-emission pollution, and suitable for CHP, It will have a great prospect and application.
