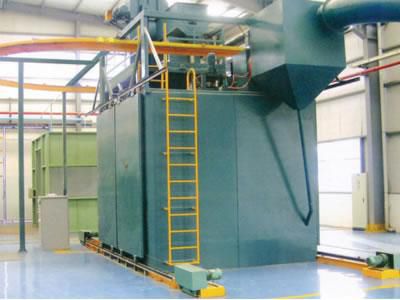

Hook blast machine Q series

compact

Our hook type blasting cleaning machine remarkably features great blasting capacity, high cleaning efficiency, compact structure, and large effective space of chamber. With a pitless design, it has no special requirement for the external structure of the workpieces being cleaned. This hook type blasting cleaning machine can be used for multiple purposes. It is widely applied in foundry industry and machinery manufacturing industry. Additionally, it can be designed and made by our company in compliance with the needs of our users for cleaning their workpieces. Technical Parameters of QT37 Series Max. External Dimension of Workpieces (Diameter × Height) : φ 3000 × 2400 Max. Hanging Weight : 1000kg Autorotation Speed : 3.14r/min Quantity of Impeller Head : ZLQ034 (4 sets) Impeller Diameter : φ 420mm Blasting Capacity of Single Set : 250kg/min Time for Cleaning of Casting : 8-10min Riveting and Forging : 12-15min Internal Dimension of Cleaning Chamber (Length × Width × Height) : 3500 × 3500 × 3200mm Movement Speed of Door : 0.12m/s Projectile Diameter : φ 0.5-1.2mm Total Air Volume : 18000m3/h Total Power : ~85kW Max. Size of Equipment (Length × Width × Height) : ~11200 × 9800 × 8830
