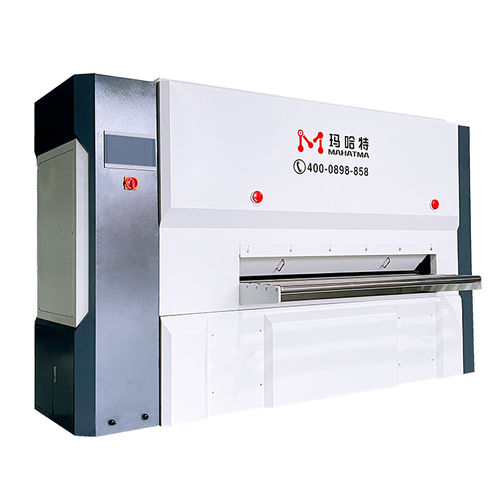

Precision leveling machine MHTM30 series

CNCsheet metal

Compared with other ordinary leveling methods, the serie of control systems have the functions of storing, calling and editing process and equipment parameters, and have the function of identifying and warning of misoperations. The 10-inch high-precision touch screen displays. When in use, on the operating platform the inlet and outlet reduction can be set according to parameters such as plate thickness, plate width, material strength or existing parameters in the database, so as to realize the work roll entry and exit clearance etc. Electric adjustment and can be adjusted and corrected manually. Compared with traditional manual leveling methods, CNC leveling machines greatly improve production efficiency. Suitable for sheet metal processing that requires higher flatness and straightness. Under large elastic-plastic bending conditions, CNC Metal Straightening Machines utilize the "Bauschinger effect" to repeatedly bend metal plates, effectively reducing deflection and transforming multiple curvatures into a single, desired curvature for precise flatness. These machines are prevalent in the industry due to their advanced technology, high leveling accuracy, and automation, ensuring stable operation even under high strength. The roller leveling process involves alternating bending, with motor and PLC-controlled pressure adjustments to eliminate internal stress and improve leveling outcomes across different board sections. Compared to other leveling methods, these machines feature a sophisticated control system that allows for the storage, recall, and editing of process parameters, along with misoperation alerts.
