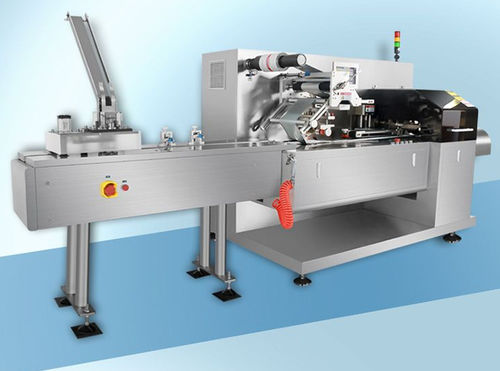

Pillow packing machine RQ-HPP-180

PLC-controlledservo-drivencontinuous

RQ-HPP-180 High-Speed Horizontal Flow Wrapper is our company’s latest high-end flow wrapping machine. It features a dual control mode that combines advanced motion controller with PLC servo-driven control, delivering faster speeds, higher precision, and better sealing and cutting performance. This machine is an ideal choice for industries such as pharmaceuticals, food, personal care, cosmetics and electronics industry which requires sealed, moisture-proof, and light-proof packaging. The flow wrap machine is a mechanical device used to wrap products in pre-formed plastic film or composite film and seal them. The flow wrap machine can achieve high-speed continuous operation and automatically complete the feeding of packaging materials, film forming, product discharge, multi-side sealing, front and rear end cutting and output. RQ-HPP-180 pillow packing machine has many advantages over similar products. High Automation: The machine uses five servo motors, distributed across the feeding, conveying, film unwinding, middle sealing, and cutting stations. N+0 Motion Control and PLC Servo Dual-Control System. This flow wrapper features fast speeds and multiple actions, with motion control and servo control seamlessly integrated. Exclusive Bidirectional Circular Cutter Design: The integrated cutter design creatively combines sealing and cutting into one process. The cutting blade is placed inside the heat-sealing mold, and its bidirectional movement synchronizes with the sealing process. This design extends the heat-sealing duration, ensuring excellent sealing quality, achieving high speeds with a maximum rate of up to 180 bags per minute.
