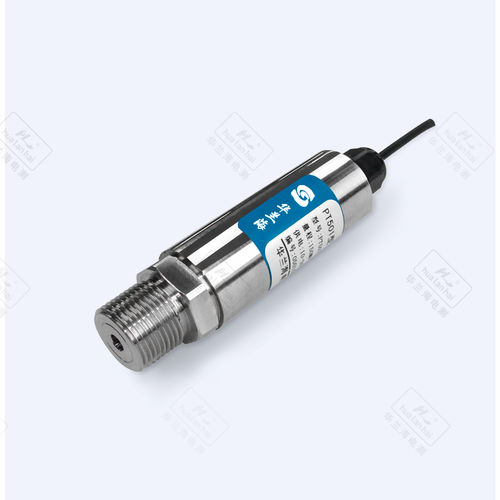

Relative pressure sensor PT501
strain gauge4-20 mA0-10 V

relative pressure sensor
relative pressure sensor
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Technology
strain gauge
Output
4-20 mA, 0-10 V, 0-5 V
Material
stainless steel
Protection level
IP65
Pressure range

Min.: 0 MPa

Max.: 150 MPa

Precision

0.2 %, 0.3 %, 0.5 %, 1 %

Process temperature

Min.: -10 °C
(14 °F)

Max.: 80 °C
(176 °F)

Description

Strain gauge pressure sensors / transmitters are widely used in pressure measurement and control of industrial equipment, water conservancy, hydraulic and pneumatic control systems, electric power, air conditioning, environmental protection, air compressor, diamond compressor, metallurgy, vehicle braking, building automatic control and constant pressure water supply. The product is composed of stable pressure sensor, high performance special processing circuit and stainless steel shell. Excitation Voltage 24VDC Burden Resistance 电流型/Electric Current output:≤800Ω Burden Resistance 电压型/Voltage output:≥50KΩ Safe Overload 120% Ultimate Overload 150%
