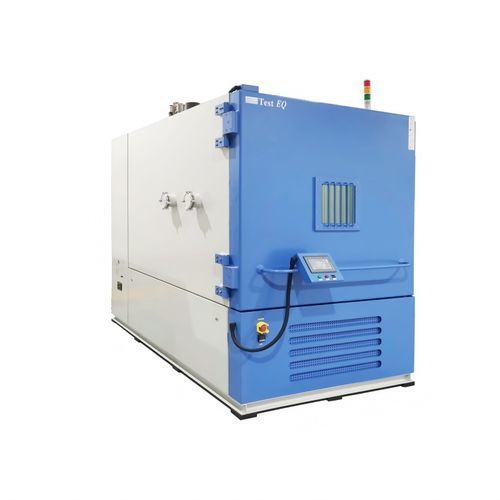

Climate chamber EWQT series

temperaturepressurealtitude

Designed to simulate and evaluate the reliability of electrical/electronic products, instruments, and industrial equipment under combined environmental stressors, this Altitude Test Chamber serves critical roles in: • Aerospace & Aviation: Testing avionics, satellite components, and materials for extreme altitude, temperature, and humidity resistance. • Automotive & Transportation: Validating performance of EV batteries, sensors, and infotainment systems in harsh conditions. • Defense & Military: Ensuring compliance of tactical gear, communication systems, and ruggedized equipment with MIL-STD and DO-160G standards. • Electronics & Telecommunications: Accelerating lifecycle testing for 5G infrastructure, IoT devices, and semiconductor components. • Energy & Industrial: Stress-testing renewable energy systems (e.g., solar inverters, wind turbine controls) and maritime equipment. Technical Specifications Temperature Range: -70°C to +180°C Altitude Simulation: Sea level to 43,000m (110-0.1 kPa) Rapid decompression: Achieve 10,000m pressure differential (2,500m → 12,500m) within 15 seconds Humidity Range: 10% to 98% RH Chamber Capacity: 10 to 100 m³ (customizable) Noise test≤ 75dB Patent Number: CN201520670413.0 Altitude Test Chambers Features 1. Precision Engineering & Durability • Seamless Construction: TIG-welded stainless steel interior with anti-corrosion coating; lever-assisted door locking system for airtight sealing. • Pressure & Vacuum Capabilities: Configurable for internal/external pressure resistance (up to 2 atm) and vacuum simulation (using Leybold or Nash systems). 2. Smart Control & Automation • AI-Driven Interface: 10" color touchscreen HMI with multi-language , paired with PLC and TEST EQ Pro Software for real-time data logging, predictive maintenance alerts, and remote monitoring via Modbus/OPC protocols. • Flexible Programming: Supports constant conditions, cyclic stress profiles, and custom sequences (1,000+ programmable steps). 3. Energy Efficiency & Sustainability • Cold and heat balance technology: Patented refrigeration system reduces energy consumption by 30% during low-temperature stabilization (-70°C to +200°C range). • Eco-Certified Components: R290/R744 refrigerants and LEED-compliant humidification systems minimize carbon footprint. 4. Advanced Humidity Control • Steam Injection Technology: Achieves 10%–98% RH accuracy with rapid humidification/dehumidification cycles (<3% deviation). • Anti-Condensation Option: Cold-trap adsorption prevents frost buildup during rapid temperature transitions. 5. Global Compliance & Customization • Standards Certified: IEC 60068, MIL-STD-810, DO-160G, GB/T, and GJB series for multinational regulatory alignment. • Aesthetic Flexibility: Powder-coated exteriors in TEST EQ White/Blue or client-branded colors; modular designs for lab integration.
