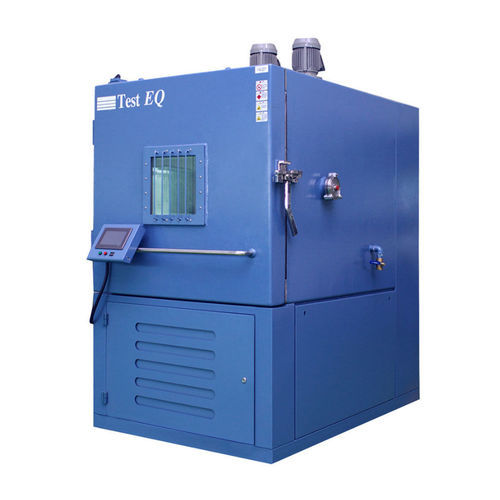

Altitude test chamber EQT series

climatichumiditytemperature

Altitude Test Chamber Primarily used in aviation, aerospace, shipbuilding, military equipment, electrical engineering, electronics, automotive, motorcycle, telecommunications, and scientific research industries to evaluate the reliability of electrical/electronic products, instruments, and other equipment during transportation, storage, and operation. Technical Specifications Temperature Altitude Chamber Temperature Range: -70°C to +180°C Altitude Simulation: Sea level to 43,000m (110-0.1 kPa) Rapid decompression: Achieve 10,000m pressure differential (2,500m → 12,500m)  within 15 seconds Humidity Range: 10% to 98% RH Chamber Capacity: 0.125 to 8.9 m³ (customizable) Noise test≤ 68dB Patent Number: CN202310792763.3 Altitude Test Chamber Features: 1.Integrated Structure: TIG seamless welding for internal construction with an aesthetically sleek design; lever-powered door lock mechanism. 2.Intelligent Control System: Chinese color LCD touchscreen human-machine interface (HMI) + high-performance programmable logic controller (PLC), paired with TEST EQ’s proprietary software for automated, intelligent, and user-friendly operation. 3.Control Modes: Constant operation and programmable operation. 4.Energy Efficiency: TEST EQ’s patented "Cold and heat balance technology ” reduces energy consumption by over 30% during low-temperature constant conditions. 5.Reliable Components: Internationally renowned compressors and critical parts ensure long-term reliability; eco-friendly refrigerants comply with global environmental protocols. 6.Humidification System: TEST EQ’s patented humidification technology (for humidity testing). 7.Pressure Resistance: Internal or external pressure-resistant configurations. 8.Vacuum System: Equipped with world-class brands Leybold or Nash. 9.Connectivity: RJ45 communication interface and remote control system (supports Modbus/OPC data transmission protocols). 10.Customizable Aesthetics: Electrostatic powder-coated exterior in "TEST EQ White" and door panel in "TEST EQ Blue." Standards GB10590-89 Low-temp/low-pressure testing GB15091-89 High-temp/low-pressure testing GB11159-89 General low-pressure testing GB/T2423.25-1992 Temp/pressure combined testing MIL-STD-810H Military equipment environmental engineering RTCA DO-160G Avionics equipment testing IEC 60068-2-41 Combined temp/low-pressure testing IEC 60068-2-13 High-temp/low-pressure testing ASTM E595-07 Outgassing under thermal vacuum ISO 7137:1995Aircraft environmental conditions
