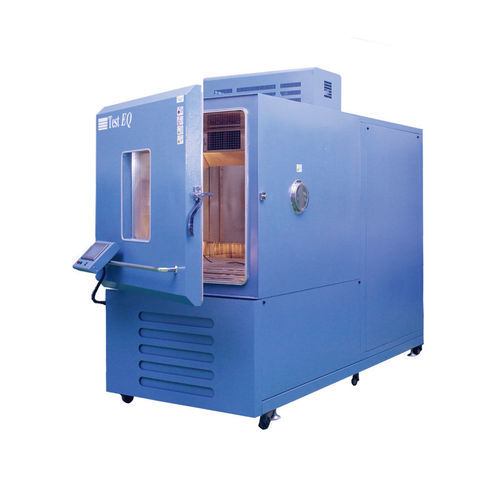

Climate chamber EATH series

humiditytemperatureESS

The climate test chamber (also known as environmental test chamber or climate simulation chamber) is a device used to simulate various natural or extreme environmental conditions, and is widely applied in product development, quality inspection, reliability verification and other fields. Technical Specifications 10°C/min Rapid Thermal Cycling Chamber - IEC 60068 Certified Rapid Temperature Range: -70℃ to +180℃( 200℃ is optional)  Rapid rate: Hot sales:  5℃/minute 10℃/minute 15℃/minute20℃/minute25℃/minute  Special fields for 30℃/minute     Temperature Fluctuation : ≤± 0.5℃      Temperature Deviation: ≤± 2.0℃      Temperature Uniformity: ≤2.0℃  Humidity Range (%RH)※2: 10%98% RH      Noise test≤ 68dB Chambers Feature 1.Integral structure, the inner wall special process rolling molding, the whole using TIG seamless welding, beautiful appearance; Door lock device adopts lever power opening mechanism. 2.The use of Chinese+English color LCD touch man-machine interface + high-performance programmable controller (PLC), with TESTEQ test box special software, with automatic, intelligent, human control and other characteristics. 3.Control mode: constant operation mode, program operation mode. 4.Patented "Cold and heat balance technology”, low temperature constant temperature season can be more than 30%. 5.Refrigeration compressor and key accessories are selected international and domestic well-known brands, long-term and reliable operation; Environmentally friendly refrigerant, in line with the requirements of international environmental protection conventions. 6.Configure RJ45 communication interface, remote control system (open data transmission protocol support Modbus/OPC). 7.Surface electrostatic powder spraying; Box color "TESTEQ White ", controller panel color "TESTEQ Blue ". 8. TESTEQ patent cold well adsorption anti-condensation function (optional). •Electronics: Stress testing PCBs, sensors, and batteries under rapid thermal shifts (e.g., ESS testing). •Automotive: Validating components like seals, ECUs, and batteries in extreme humidity and temperature cycles of fast change rate test chambers. •Aerospace: Simulating harsh environments temperature cycling for avionics and structural materials. •Materials Research: Evaluating thermal expansion,temperature change rates, corrosion resistance, and aging of plastics, metals, and coatings. Standards Compliance of testing requirements •National Standards: •GB/T2423.1-2008 (Low-temperature testing), GB/T2423.2-2008 (High-temperature testing). •GB/T2423.3-1993 (Constant temperature and humidity), GB/T2423.4-1993 (Tmperature Cycling humidity). •Military & Industry Standards: •GJB150.3/GJB150.4 (Military environmental stress tests), GJB1032-90 (Electronics screening). •IEC 60068-2-14 (Rapid temperature change testing)
