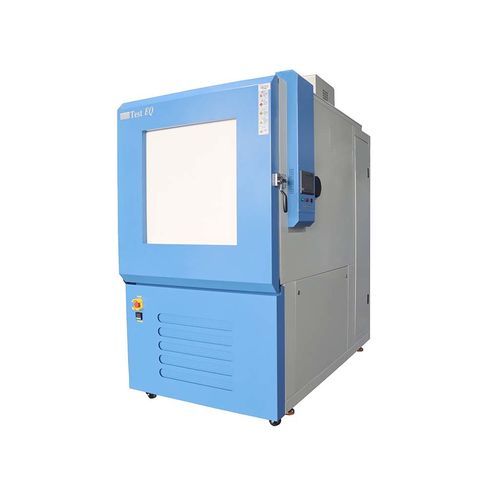

Rapid temperature cycling test chamber EATH series

thermostatichumiditytemperature

Product Overview: The Ultra-Fast Thermal Shock Chamber is designed for rapid temperature cycling, supporting peak rates up to 30°C/min, and is compliant with IEC, MIL-STD, and DO-160 standards. It is ideal for environmental stress screening (ESS), reliability testing, and validation of avionics, military electronics, and semiconductor components. Characteristics / Technical Specifications: - Capacity: 100 to 12,000L - Temperature Range: -70°C to +200°C - Temperature Change Rate: 5°C/min to 30°C/min (optional) - Temperature Fluctuation: 75%RH), ≤±5.0%RH (humidity≤75%RH - Window size: 300x360 mm or 380x520 mm - Noise Level: Heating 49 dB, Cooling 65–68 dB - Water Supply: Pump Supply - Water Tank Capacity: 25L or 40L - Power: AC380V; 3 phase 5 lines; 50/60HZ - Patent No.: CN201920954255.X Product Features Industrial-Grade Rapid Temp Change Chamber | Up to 30°C/min | IEC 60068-2-14 Certified Certify your avionics and military electronics with confidence using our DO-160 and MIL-STD-810G certified rapid temperature change chamber. Engineered for rigorous environmental stress screening, our Rapid Temperature Change Test Chamber delivers precise, repeatable thermal shock performance with programmable ramp rates up to 30°C/min (non-linear),The advanced chamber control enables seamless switching between extreme temperatures, mimicking real-world operational stress. Fully compliant with RTCA DO-160E/G, MIL-STD-810G, and GB/T2423.22, it is trusted by OEMs and Tier-1 suppliers for flight-critical component validation. Features: 1.Cold/Hot Balance Technology Ensures extreme temperature stability while reducing energy consumption by 30%. 2.Smart Control System (v3.0) Provides real-time monitoring and traceability of operational status, eliminating manual checks and significantly cutting labor and maintenance costs. 3.High-Speed Transition Achieves rapid temperature shifts with mechanical refrigeration, ensuring reliability and precision for critical testing environments. 4.User-Centric Design Customizable chamber sizes and intuitive controls meet diverse industry needs, from aerospace to electronics validation. TESTEQ Wide Range Thermal Cycling Test Equipment -70°C~+180°C | IEC 60068-2-14 N Test Ready Fully Compliant with Major International Test Standards The TESTEQ Rapid Temperature Change Test Chamber is engineered to meet and exceed the stringent requirements of key industry standards, including: Reliability Testing Chamber for Electronics | Rapid Temp Cycle from -55°C to +125°C | ±0.3°C Precision (Temperature Cycling- JEDEC Standard JESD22-A104G) ― Reliably performs high-speed temperature cycling tests for semiconductor and electronic components to evaluate their robustness against thermal fatigue and interconnect failures. Environmental Stress Screening Chamber | 5–30°C/min Adjustable Rate | Meets MIL-STD-810G Method 503 (Military Standard Environmental Test Methods) ― Supports a wide range of defense and aerospace environmental stress screening (ESS) tests, including rapid transition thermal cycling as required by MIL-STD-810 and MIL-STD-883. Rapid Temperature Cycling Test Chamber -55°C to +180°C | DO-160 & GB/T2423.22 Certified (Environmental Conditions and Test Procedures for Airborne Equipment) ― Ideal for validating avionics equipment under extreme temperature variations and rapid transition conditions per Sections 4.0 and 5.0.
