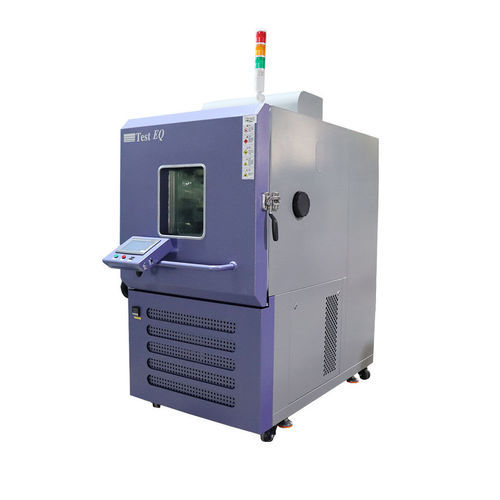

Ultra-low-temperature test chamber ETH series

thermostaticclimatichumidity

Technical Specifications Capacity245 to 1000L Temperature Range70℃ to +180℃ Temperature Fluctuation≤ ±0.5℃ Temperature Deviation≤ ±2.0℃ Temperature Uniformity≤ 2.0℃ Humidity Range (%RH)※210%98% RH Humidity Uniformity±1.0 % RH Noise test≤ 68dB 1.Monolithic structure with inner walls formed by special rolling technology and seamless TIG welding, ensuring an aesthetically sleek design. The door lock employs a 2.-driven opening mechanism. 3.Chinese-language color LCD touchscreen HMI paired with a high-performance programmable logic controller (PLC) and custom-developed software by Hardy Test Chambers, offering automated, intelligent, and user-friendly control. 4.Control modes: Constant operation mode, program operation mode. 5.TEST EQ patented "Cold and heat balance technology” reduces energy consumption by over 30% during low-temperature stabilization. 6.Refrigeration compressors and critical components sourced from internationally and domestically renowned brands ensure long-term reliability. Uses eco-friendly refrigerants compliant with international environmental conventions. 7.Humidification system incorporates TEST EQ patented technology. 8.Equipped with an RJ45 communication interface and remote control system (supports Modbus/OPC protocols for open data transmission). 9.Exterior finished with electrostatic powder coating; body in "TEST EQ White" and door in "TEST EQ Blue." 10.TEST EQ patented Cold Well Adsorption Anti-Condensation Function (optional). Primarily used for accelerated damp heat testing, alternating damp heat testing, constant humidity testing, as well as high/low temperature routine testing, cold resistance testing, low-temperature storage, and adaptability testing under rapid or gradual temperature changes in industries such as aviation, aerospace, electronics, instrumentation, electrical products, materials, components, equipment, and complete machines.
