Dust chamber SD series
climatichumidityhigh-pressure

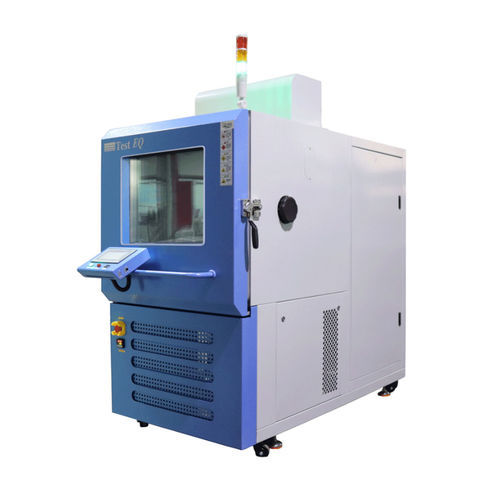

Dust chamber - SD series - Guangdong Test EQ Equipment co., Ltd - climatic / humidity / high-pressure
Dust chamber - SD series - Guangdong Test EQ Equipment co., Ltd - climatic / humidity / high-pressure
Add to favorites
Compare this product

Characteristics

Type
climatic
Controlled parameter
temperature, humidity, high-pressure
Test type
environmental, durability, stability, cooling, for color assessment, sand corrosion, EMC, simulation, FCC compliance, dust, sand, for structural durability, penetration
Product applications
for electrical equipment, for battery, for vehicles, for solar panels, device, electronic equipment, for avionics instruments, for materials, for materials testing
Application domain
for quality control, for the aeronautical industry, laboratory, for metrology laboratories
Configuration
floor-standing, compact, walk-in, on casters
Light source
LED
Protection level
corrosion-resistant
Number of doors
1-door
Chamber material
stainless steel
Options and accessories
PLC-controlled
Other characteristics
stainless steel, automatic, energy-saving, alternating, constant
Capacity

Max.: 3 m³
(105.94 ft³)

Min.: 1 m³
(35.31 ft³)

Temperature

Max.: 80 °C
(176 °F)

Min.: -30 °C
(-22 °F)

Interior length

800 mm, 1,000 mm, 1,500 mm
(31.5 in, 39.37 in, 59.06 in)

Interior height

800 mm, 1,000 mm, 1,500 mm
(31.5 in, 39.37 in, 59.06 in)

Interior depth

1,000 mm, 1,500 mm
(39.37 in, 59.06 in)

External length

1,000 mm, 1,500 mm
(39.4 in, 59.1 in)

External height

1,400 mm, 1,500 mm, 2,300 mm, 8,500 mm
(55.12 in, 59.06 in, 90.55 in, 334.65 in)

External depth

2,000 mm, 2,100 mm, 2,500 mm, 3,350 mm, 3,650 mm
(78.74 in, 82.68 in, 98.43 in, 131.89 in, 143.7 in)

Description

Technical Specifications Concentration: Adjustable 1–20 g/m³ (±0.5 g/m³ precision). Temperature Range: -30°C to +80°C (±2°C stability). Airflow Velocity: 1–20 m/s (variable for static/dynamic testing). Volume: 0.6 m³ (standard) to 2.5 m³ (custom), with reinforced acrylic observation windows. Test Duration:Programmable cycles (1–999 hours), IP5X/IP6X compliance modes. 1.Multi-Scenario Simulation: •Replicates desert storms, industrial dust ingress, and abrasive wear with programmable wind/sand profiles. 2.Precision Particle Control: •Cyclonic dispersion system ensures uniform particle distribution (ISO 12103-2025 certified). 3.Durability: •Hard-coated aluminum interior, wear-resistant seals, and self-cleaning filter traps. 4.Smart Monitoring: •Real-time particle counter, temperature/humidity logging, and AI-driven failure prediction. 5.Energy Efficiency: •Recirculating airflow design reduces energy use by 35% (ENERGY STAR® 2025 compliant). 1.Automotive: •Validates seals for EV battery packs, air intake systems, and off-road vehicle components (ISO 16750-2025). 2.Aerospace: •Tests avionics cooling fans and satellite solar panels under Martian dust conditions (MIL-STD-810H). 3.Consumer Electronics: •IP6X certification for smartphones, drones, and outdoor smartwatches. 4.Industrial Equipment: •Evaluates hydraulic systems, robotics, and agricultural machinery in harsh environments. 5.Renewable Energy: •Assesses wind turbine bearings and solar tracker durability in desert climates.
