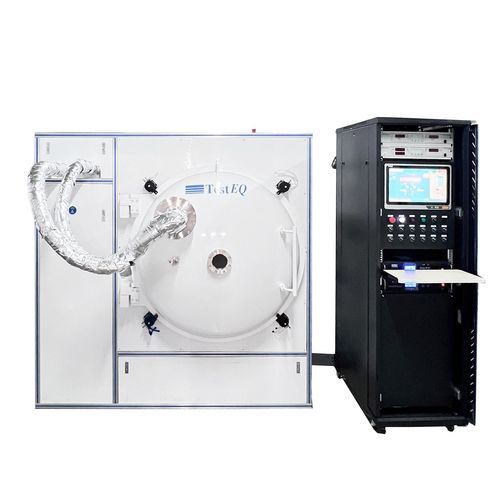

Degassing vacuum chamber

stainless steelfor surface analysispressure

The thermal vacuum test chamber is a testing device that simulates the space environment or extreme low-pressure, high-temperature/low-temperature conditions. It is mainly used in the fields of aerospace, electronic components, and materials science, to verify the reliability of products in the vacuum + temperature alternating environment. Technical Specifications - Capacity (L): 500~50,000L (Customizable) - Working pressure: 1Kpa to -0.8 Mpa - Air Pressure Control Accuracy: ≤ ±0.0002 MPa - Pressurization Rate: Ambient Pressure→-0.8MPa ≤30min - Depressurization Rate: 1Kpa→Ambient Pressure ≥30min - Humidity Control: ≤30% RH - Continuous operation: ≥2000 hours, design life 19 years - Main material: Stainless steel SUS304, SS316L, Low alloy steel, Titanium, Nickel, Zirconium, or Hastelloy, Monel alloy and cladding plate - Seal type: Magnetic seal, mechanical seal, packing seal and gasket seal Product Features - Extreme Environment Simulation Solutions for Advanced R&D - High-precision environmental test systems deliver performance under extreme pressure differentials—up to 800 kPa (0.01 MPa positive / 0.8 MPa negative) - Applications: aerospace, deep-sea exploration, fusion energy, defense - Engineered with titanium alloy chambers and multi-stage hydraulic compensation - Simulates transient pressure shifts for submersible hull integrity (e.g., China’s Fendouzhe deep-sea vehicle) and spacecraft docking mechanisms - Replicates ultra-high vacuum (<10⁻⁷ Pa) with simultaneous helium cooling at 1 kPa, integrating molecular pumps and high-temperature graphite heaters (e.g., EAST tokamak) - Mimics 30km-altitude rarefied air (0.8 MPa vacuum) and supersonic aerodynamic loads (1 kPa overpressure) for stealth technology - Supports plasma coating deposition and adhesion testing for platforms like the B-21 bomber - Enables radiation-hardened component validation under Mars-like low pressure (1 kPa N₂) and Jupiter-level ionizing environments (0.8 MPa Xe gas) - Features heavy-ion accelerators and multi-gas partial pressure control - Ideal for next-gen material science and space-grade reliability verification Test standards and specifications International standards ECSS-Q-ST-70-02C (European Space Agency thermal vacuum test standard) MIL-STD-810G (U.S. military standard, environmental testing methods) NASA-STD-7001 (NASA spacecraft thermal vacuum test requirements) Industry standards ISO 15856 (spacecraft gas emission test) JEDEC JESD22-A104 (temperature cycling test for electronic components)
