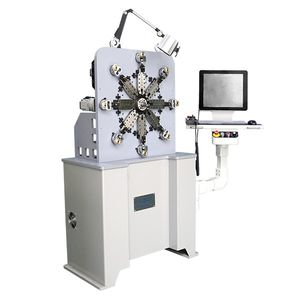

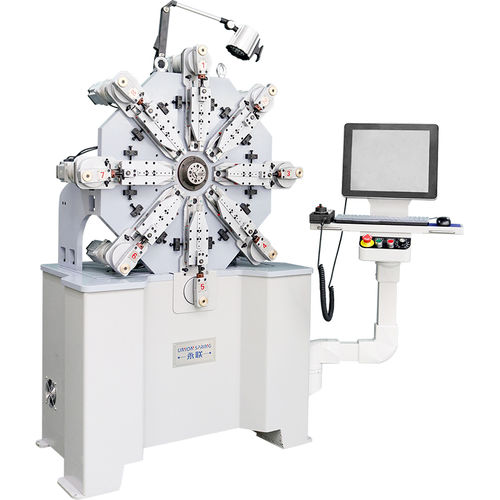

Spring forming machine US-236

New energy charging piles, that is, equipment and devices that provide charging Products Description 1、The camless spring machine adopts a unique camless and rockerless design, the adjustment speed is up to 50% faster than the traditional cam machine, with fast production speed, precise positioning, stable operation and powerful expandability. 2、Independently controlled by multiple groups of servo motors, it has the advantages of traditional 8-station machinery and also has 1 group of free hands, which can go up and down, left and right, and play freely to produce difficult springs, easier, faster and more accurate. 3、Intelligent module, automatic detection and alarm, Windows window operation, Chinese and English display, easy to learn and use. Technical parameter Wire Diameter Ø0.3～Ø2.5MM Axis 10-12 Wire Feed Wheel Sets 3Sets Slide Axis 0.75KW×8 Quill Rotary Axis 0.75KW Wire Feeding Axis 2.7KW Spinner Axis(Optional) 0.4KW Free Arm Axis(Optional) 0.4KW Dimension (LxWxH) 1400x1100x1700 (mm) Weight (kg) 900kg
