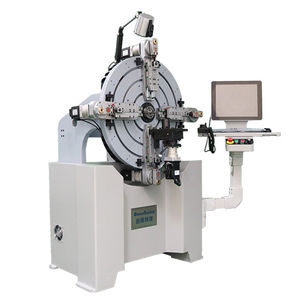

Wire winding machine UN-8Y-750

automaticpackageprocess

1. The fully automatic winding process does not require personnel to participate, and automatically completes the action of picking up the coil package, which can realize one person and multiple machines on duty. 2. The machine uses rubber rollers for feeding, which is faster for thin and thin wires, and is not easy to bend. It is suitable for large wire diameters with mold cylinder feeding. 3. Double guide rails + precision helical gear drive to ensure temperature accuracy, and at the same time, the conveying motor and the winding head are interpolated and followed. During the winding process, the motor is sent to the winding head. 4. The feeding and cutting mechanism can accurately feed the wire into the winding slot. During the winding process, the wire can be compressed to prevent the wire from running out of position. 5. Products are widely used in high frequency, new energy, network transformers and other industries. Technical parameter Wire diameter Φ0.5-5.0mm Axis 7/8 Winding servo 2.0KW*2 Wire feeding servo 0.4KW Rising servo 2.0KW Down servo 2.0KW Angled servo 0.4KW Handling servo 0.4KW L*W*H 3550*1250*1800mm weight 1800kg
