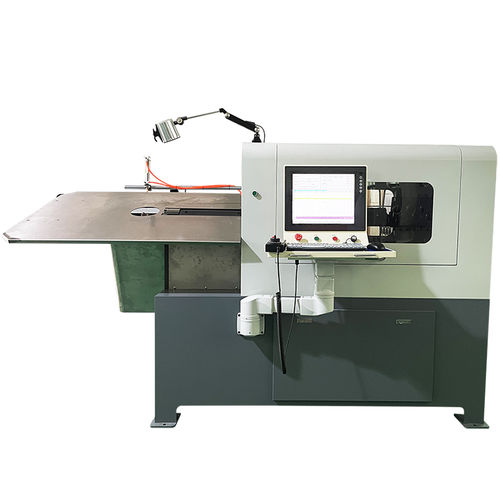

Motorized bending machine US-2D408

for wiresforming4-axis

1. The machine adopts imported motor and reducer, and the production speed is more than 20% higher than that of domestic counterparts and similar products. Bearing, gear and other important parts imported from Taiwan, the equipment is durable and reliable. 2. The computer interface can adjust the speed and process while production. Production efficiency and output are displayed on the computer interface, the equipment can automatically stop after reaching the specified output. 3. High precision, can be used for wire forming products within the range of 3.0-10.0mm wire diameter, with the error reduced to 0.1mm.Production can be achieved at the slowest bending angle and angle without any change, production stability is better. 4. The wire that the machine can bend includes: iron wire, stainless steel wire, non-ferrous metal wire and special materials (including round wire, square wire, flat wire, etc.), can be bent into a variety of plane irregular shape and a variety of plane buckle, hook, etc. Technical parameter Wire Feed Wheel Sets 3Sets Wire Feeding Axis 2.9KW External Torsion Axis 1.3KW Cutter Axis 1.0KW Platform Lifting Axis 1.0KW
