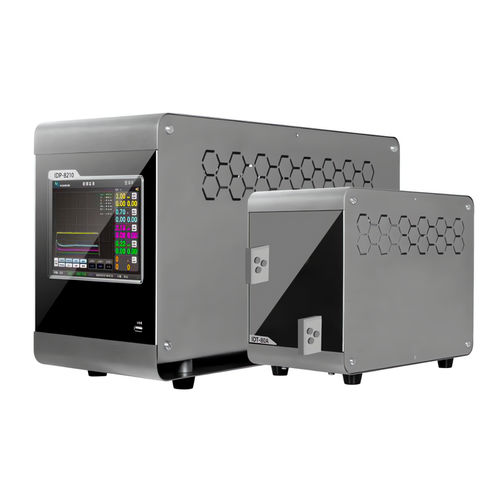

Inverter welding power supply IDP-8210

resistancethree-phasewater-cooled

IDP-8210 is a high-precision welding power supply with 6 control modes and 5 optional operating frequencies (1KHz/2KHZ/3KHZ/4KHZ/5KHZ). high precision inverter welding poewr supply is the first servo motor control function in the industry, which can achieve precise adjustment of multi-stage welding pressure and adjustable welding head reset distance, solving the instantaneous impact force problem of cylinder welding head. Support multi-stage welding combination cycle pulse discharge. Exquisite man-machine touch interface, comes with oscilloscope and monitor function, can display current, voltage, power, resistance and other 8 real waveforms and corresponding welding data. Support pressure displacement, built-in pressure monitoring, pressure trigger, displacement monitoring, displacement depth of fusion interrupt function. Built-in database function, can store about 5 million welding joints of current, voltage, power, resistance, pressure, displacement and other values, and support U disk export. Monitor the average RMS value and instantaneous value of current, voltage and power to control the welding quality.
