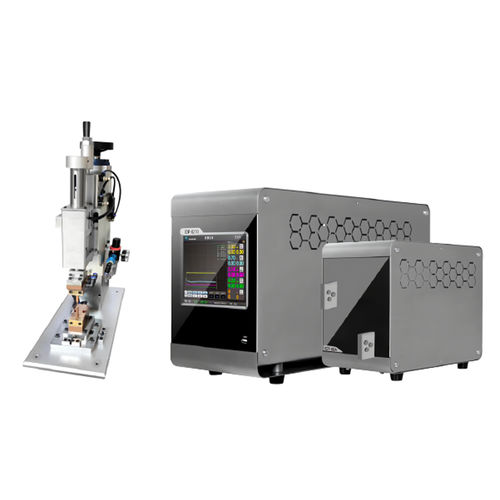

Spot welding machine IDP8210

resistancepulsePLC-controlled

IDP-8210 is a high-precision spot welding machine with 6 control modes and 5 optional operating frequencies (1KHz/2KHZ/3KHZ/4KHZ/5KHZ). 1. 8-inch high-definition touch screen, with built-in detector function, real-time display of welding current, voltage, power, resistance waveform and corresponding welding data, rich and intuitive display content, simple and easy to understand. 2. Fixed peak current, fixed secondary current, fixed secondary voltage, fixed power, fixed pulse width, mixed control and other control modes. 3. Built-in multiple fault diagnosis, welding protection function, and monitoring alarm function to ensure welding safety. 4. Rich I/O interface, support multiple communication protocols (RS-232, RS-485, Ethernet, etc.), convenient for external automation control. 5. Support welding record storage and fault information storage, real-time export and reading of U disk, convenient for quality monitoring and quality tracking. 6. Support upper and lower limit monitoring settings of current, voltage and power. If the output exceeds the set upper and lower limits, an alarm prompt will be given. 7. Support multi-stage discharge, set slow rise and slow fall functions, which is helpful for welding forming and effectively solves welding spatter, ensuring welding stability. 8. 32 sets of parameter storage, convenient for multi-variety welding (expandable). 9. 1K/2k/3k/4k/5k frequency is adjustable, with high control response and precision, suitable for a variety of complex welding conditions.
