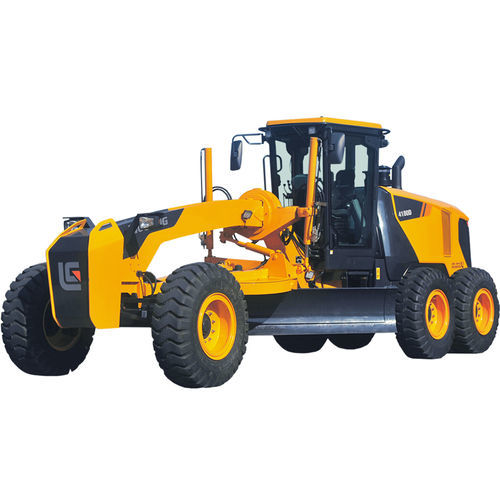

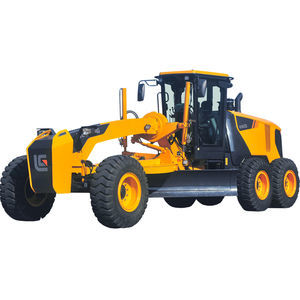

Outdoor motor grader 4180D

for constructionrough terrain

Overview

• Fuel-efficient Cummins engine.
• Five-column cab design with low vibration; reduced noise, dust and UV resistance.
• Meritor wet axle with no‑spin differential lock as standard.
• Traction-frame swing adjustment mechanism for improved traction control.

Application

• Road construction and maintenance

Key Specifications

• Operating weight: 16,000 kg (Stage II) / 17,190 kg (Stage III)
• Blade width: 3,960 mm
• Drawbar pull: 83 kN (Stage II) / 91 kN (Stage III)
• Rated power: 142 kW (190 hp) @ 2,200 rpm (Stage II) / 135 kW (181 hp) @ 2,050 rpm (Stage III)
• Maximum speed: 40 km/h (Stage II) / 38 km/h (Stage III)
• Turning radius: 7,200 mm

4180D Stage II - Specifications Table
Operating weight: 16,000 kg
Maximum speed: 40 km/h
Rated power: 142 kW (190 hp / 193 ps) @ 2,200 rpm
Drawbar pull: 83 kN
Blade width: 3,960 mm
Turning radius: 7,200 mm

4180D Stage III - Specifications Table
Operating weight: 17,190 kg
Maximum speed: 38 km/h
Rated power: 135 kW (181 hp / 184 ps) @ 2,050 rpm
Drawbar pull: 91 kN
Blade width: 3,960 mm
Turning radius: 7,200 mm

Technical features

• Engine: Cummins (fuel-efficient)
• Cab: five-column design — low vibration, reduced noise, dust and UV resistant
• Axle: Meritor wet axle with no‑spin differential lock (standard)
• Feature: traction-frame swing adjustment mechanism for variable traction
• Transmission: ZF powershift (where specified)
