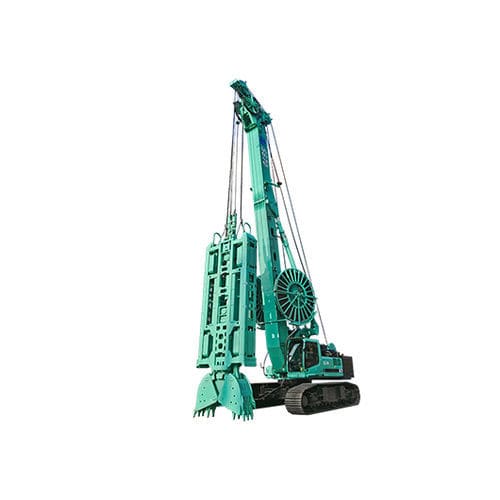

Diaphragm wall load lifting grab SG70

electro-hydraulic

Overview

• Manufacturer: supplier of specialised equipment for underground wall construction.
• Low consumption and high efficiency
  The electromechanical-hydraulic integrated system is matched for reduced fuel consumption (≈25%) and improved construction efficiency (≈15%) versus comparable models.
• Stable and reliable
  Double-winch integrated configuration with single-row rope reel for the grab extends wire rope service life. Controlled hose winch feeding reduces extrusion and wear, extending grab tubing life by up to 60%.
• Operator-oriented design
  Equipped with an air-suspension seat and an optimized spatial layout to improve operator comfort and facilitate maintenance.
• Digital control and monitoring
  Visual control and monitoring system displays equipment status and provides automatic alarms for abnormal conditions.
• Data management
  Digital management system records and stores construction dynamic parameters in real time.

Key specifications

• Extraction force: 700 kN
• Wall width: 0.8-1.5 m
• Wall depth: 90 (standard 75) m

Product specifications (tables)
Model
Wall width: 0.8-1.5 m
Max. lifting force: 700 kN
Wire rope diameter: 36 mm
Frame + shovel weight: 23-35 t

Additional model parameters
Wall depth: 90 (standard 75) m
Winch single line pull: 2×350 kN
Main winch max speed: 75 m/min
Machine weight (without shovel): 95 t

Main parameter
Total height: 18,300 mm
Distance from frame center to base machine slewing center: 4,430 - 5,630 mm
Max distance from shovel to ground: 5,500 mm
Distance from base machine slewing center to base machine rear end: 4,500 mm

Upper chassis: JS80
Engine: Cummins X12 / China III
Rated output power: 336 kW
Hydraulic system flow: 2 x 360 + 165 L/min
Max speed: 2,100 rpm
Hydraulic system pressure: 35 MPa

Retractable undercarriage: JT85F
Crawler width: 3,450 - 4,800 mm
Track shoe width: 800 mm
Traveling speed: 1.7 km/h
Crawler length: 5,800 mm
Traction force: 700 kN
