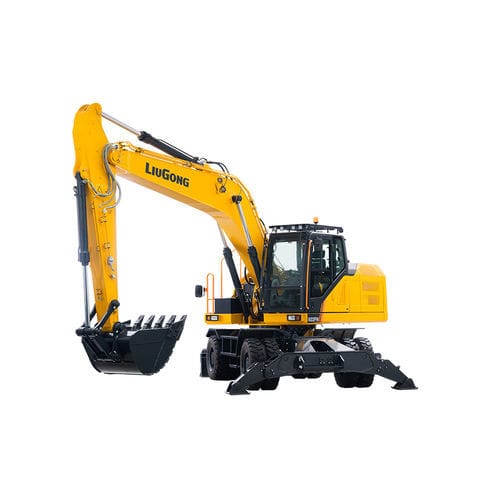

Large excavator 922FW

wheeledTier 3diesel

Overview
The 922FW wheeled excavator features full electronic hydraulic control and a Cummins QSB7 engine delivering 124 kW. Designed for heavy-duty operations in mining, ports and aggregate handling, it combines efficient fuel management, extended service intervals and an operator cab configured for sustained work cycles.

Key specifications

• Operating weight: 22,000 kg
• Rated power: 124 kW
• Bucket capacity (std.): 1.0 m³

Applications

• Mining
• Ports and material handling
• Quarrying
• Agriculture (heavy earthmoving)

Technical specifications

• Operating weight: 22,000 kg
• Std. bucket capacity: 1.0 m³
• Travel speed (Low): 10 km/h
• Travel speed (High): 30 km/h
• Engine model: Cummins QSB7
• System maximum pressure: 34.3 MPa
• Rated engine power: 124 kW
• Arm breakout force: 105 kN
• Emission standard: Stage III
