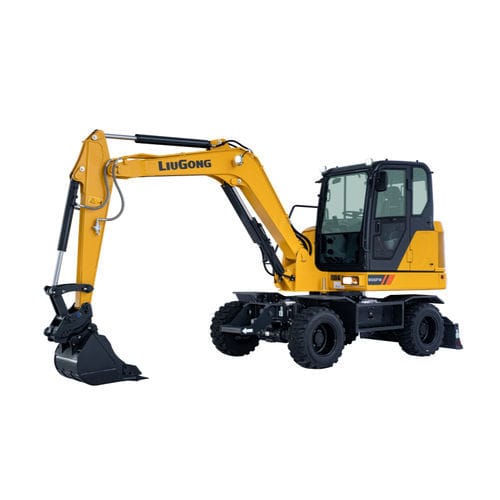

Midi excavator 906FWwheeleddieselconstruction
Add to favorites
Compare this product
Characteristics
- Size
- midi
- Locomotion
- wheeled
- Engine type
- diesel
- Applications
- construction
- Bucket capacity
Min.: 60 l
(15.85 gal)Max.: 210 l
(55.476 gal)- Operating weight
5,880 kg
(12,963.2 lb)- Engine power
46.2 kW
(62.81 hp)- Travel speed
Min.: 27 km/h
(16.8 mph)Max.: 30 km/h
(18.6 mph)- Digging depth
3.85 m
(12'07" )
Description
Overview
Key specifications
Applications
Technical specifications
- The 906FW wheeled excavator is an advanced hydraulic transmission wheeled excavator designed for municipal applications. It provides reliable machine structure, improved fuel economy and comfortable operation for efficient on‑road and confined‑site work.
- High performance: Yanmar 4TNV98C engine with competitive fuel consumption.
- Main structural components are engineered with high safety factors using CAE stress analysis to ensure long service life.
- Equipped with a hydraulic travel system enabling cruise control, hydraulic steering and floating cylinder lock for easier operation.
- Highly maneuverable: driving speed up to 30 km/h and a turning radius of 5.2 m for operations in constrained areas.
- Two operation modes: travel mode and working mode. Optional features: cruise control, reverse alarm and dual‑circuit hydraulic brake.
Key specifications
- Operating weight: 5,880 kg
- Standard bucket capacity: 0.18 m³ (range 0.06–0.21 m³)
- Engine power: 46.2 kW (62.0 hp) @ 2,200 rpm
- Engine model: Yanmar 4TNV98 / 4TNV98C
- Maximum swing speed: 9.3 rpm
- Bucket breakout force: 41 kN
- Arm breakout force: 31 kN
- System maximum flow: 168 L/min
- System pressure: 25 MPa
- Emission standard: CN III
- Travel speed (high): 27 km/h (max cited 30 km/h)
- Shipping width: 1,905 mm
- Shipping length: 5,900 mm
- Shipping height: 2,880 mm
Applications
- Road works
- General construction
Technical specifications
- Boom length: 3,000 mm
- Arm length: 1,600 mm
- Digging reach: 6,150 mm
- Digging reach on ground: 5,891 mm
- Digging depth: 3,850 mm
- Vertical wall digging depth: 3,406 mm
- Cutting height: 5,950 mm
- Dumping height: 4,400 mm
- Minimum front swing radius: 2,450 mm
- Lift above ground: 510 mm
- Depth below ground: 180 mm
