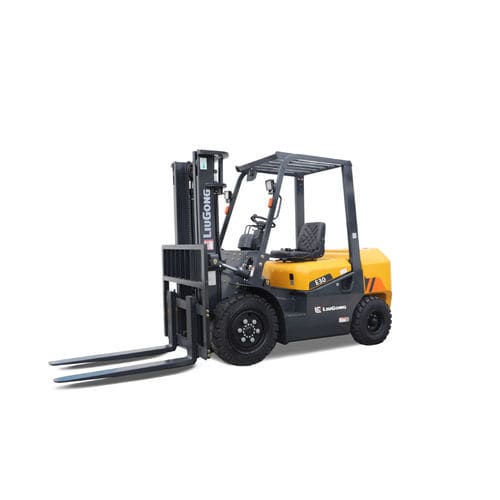

Diesel forklift CPCD30ride-onharborcounterbalanced
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Operator
- ride-on
- Applications
- harbor
- Other characteristics
- counterbalanced
- Carrying capacity
3,000 kg
(6,613.9 lb)- Lifting height
3 m
(9'10" )- Overall width
1,225 mm
(48.2 in)- Overall length
1,070 mm
(42.1 in)- Load center distance
500 mm
(19.7 in)- Weight without load
4,260 kg
(9,391.7 lb)- Axle loading with maximum load front
6,450 kg
(14,219.8 lb)- Axle loading with maximum load rear
810 kg
(1,785.7 lb)- Axle loading without load front
1,680 kg
(3,703.8 lb)- Axle loading without load rear
2,580 kg
(5,687.9 lb)- Length to fork face
2,720 mm
(107.1 in)- Ground clearance under mast with load
135 mm
(5.3 in)- Ground clearance at center of wheelbase with load
140 mm
(5.5 in)- Turning circle radius
2,400 mm
(94.5 in)- Travel speed
Max.: 19 km/h
(11.8 mph)Min.: 18.5 km/h
(11.5 mph)- Lifting speed
Max.: 475 mm/s
Min.: 455 mm/s
- Lowering speed
Max.: 0.48 mm/s
Min.: 0.46 mm/s
- Gradeability
18 %, 20 %
- Rated output
40 kW
(54.4 hp)- Rated speed
2,650 rpm
(16,650.4 rad.min-1)- Maximum operating pressure
18.1 MPa
Description
Product Overview
Key Specifications
Power Type: Diesel
Rated Capacity: 3,000 kg
Rated Load Center: 500 mm
Length to Fork Face, Std. 2-stage Mast: 2,720 mm
Max. Fork Height, Std. 2-stage Mast: 3,000 mm
Overall Width: 1,225 mm
Applications
Notes
For reference only.
Technical specifications
- Counterbalanced diesel forklift designed for handling loads up to 3,000 kg
- Ergonomic operator cabin and controls for long shifts
- Modular architecture enabling intelligent system integration
- Engine and drivetrain tuned for efficient fuel use and continuous operation in port and agricultural environments
- Accessible components for straightforward routine maintenance
Key Specifications
Power Type: Diesel
Rated Capacity: 3,000 kg
Rated Load Center: 500 mm
Length to Fork Face, Std. 2-stage Mast: 2,720 mm
Max. Fork Height, Std. 2-stage Mast: 3,000 mm
Overall Width: 1,225 mm
Applications
- Ports
- Agriculture
Notes
For reference only.
Technical specifications
- Power Type: Diesel
- Rated Capacity: 3,000 kg
- Rated Load Center: 500 mm
- Length to Fork Face, Std. 2-stage Mast: 2,720 mm
- Max. Fork Height, Std. 2-stage Mast: 3,000 mm
- Overall Width: 1,225 mm
