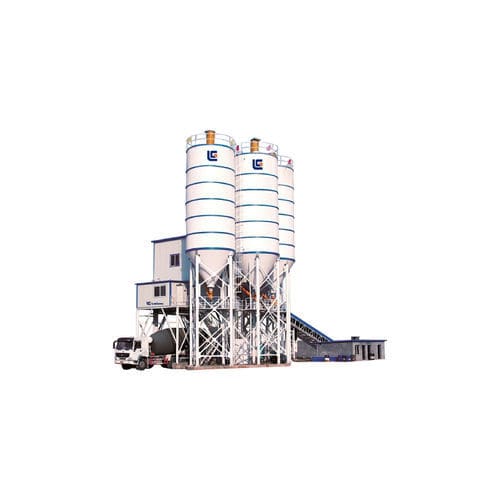

Stationary concrete batching plant HZS120Aautomaticcompacttwin-shaft
Add to favorites
Compare this product
Characteristics
- Mobility
- stationary
- Other characteristics
- compact, automatic, twin-shaft, with belt conveyor, minimize dust emission, for energy saving
- Capacity
120 m³/h
(4,237.76 ft³/h)
Description
Key specifications
Description
Characteristics / Technical specifications
- Theoretical output: 120 m³/h
- Mixer: JS2000
- Rated power: 2 × 37 kW
Description
- Excellent mixing performance: the mixing unit uses SICOMA mixer with Italian technology to ensure high mixing efficiency and consistent batch quality.
- Simple operation: PLC or industrial computer control with manual/automatic switch. Dynamic panel displays status of each component, providing accurate measurement, strong anti-interference, reporting and web access for data sharing, automated management and real-time monitoring.
- Modular design: compact modular structure. The batching unit, main mixing building and powder tanks are independent modules for quick assembly/disassembly and flexible layout to suit different site conditions.
- Energy saving and environmental control: reverse-pulse dust collector controls dust from mixer and cement/fly-ash hoppers, balancing pressures to ensure measuring accuracy and emissions compliance. Pneumatic conveying with sealed wind-channel reduces failures and, compared with conventional screw conveyors, saves about 40 kW per station per hour.
Characteristics / Technical specifications
- Theoretical Output: 120 m³/h
- Mixer: JS2000
- Max Motor: 2 × 37 kW
- Aggregate Batcher: 3200 L
- Aggregate Types: 4
- Screw Conveyor Capacity: 80 t/h
- Total Power Consumption: 210 kW
- Cement Measuring Accuracy: (0~1200) ± 1%
- Water Measuring Accuracy: (0~600) ± 1%
- Cycle Period: 60 s
- Mixer Capacity: 2000 L
- Silos: 4×200 t (optional)
- Aggregate Hoppers: 4×25 m³
- Slope Belt Capacity: 800 t/h
- Concrete Discharge Height: 4 m
- Aggregate Measuring Accuracy: (0~3500) ± 2%
- Fly-Ash Measuring Accuracy: (0~800) ± 1%
- Additive Measuring Accuracy: (0~50) ± 1%
