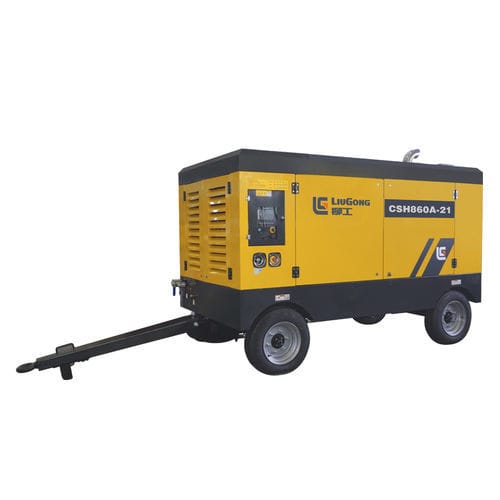

Screw engine-driven compressor CSH860A-21

mobile

Overview

• The E-Kon control system provides intuitive local operation and supports remote access for monitoring and control. One-key Stop/Start simplifies operation while remote access to compressor controls and parameters helps increase productivity and reduce downtime.
• Double air filter configuration offers additional protection to extend the service life of the engine and air end.
• Holistic design of the fuel injection pump and air end reduces the risk of jamming at high speeds, improving operational reliability.

Application
Mining

Key specifications (table)
Free air delivery: 24/18 m³/min
Compressor oil: 80 L
Dual transformation: Dual
Engine type: B7-T3
Working and Idling speed: 2000/1300 1600/1300 rpm
Displacement: 6.79 L
Fuel capacity: 340 L
Outlet×quantity: G1½×1 & G¾×1
Overall dimensions: 3787x1601x2226 mm
Pressure: 21 bar
Element: LGIR
Engine supplier: Cummins
Power: 221 kW
Number of cylinders: 6
Emission levels: StageIII
Weight: 3.2 t
Tire size×quantity: Four Tires
Noise: 83±3 dB(A)

Technical specifications

• Free air delivery: 24/18 m³/min
• Pressure: 21 bar
• Dual transformation: Dual
• Compressor oil: 80 L
• Engine type: B7-T3
• Working and Idling speed: 2000/1300 1600/1300 rpm
• Displacement: 6.79 L
• Fuel capacity: 340 L
• Outlet×quantity: G1½×1 & G¾×1
• Overall dimensions: 3787x1601x2226 mm
• Element: LGIR
• Engine supplier: Cummins
• Power: 221 kW
• Number of cylinders: 6
• Emission levels: StageIII
• Weight: 3.2 t
• Tire size×quantity: Four Tires
• Noise: 83±3 dB(A)
