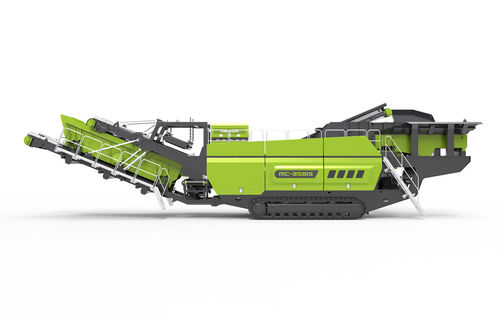

Impact crusher MC-350IS

mobileprimarycrawler

Simple mechanical structure. Wide usage scenario Has primary and intermediate crushing functions Wide usage scenario Has primary and intermediate crushing functions Easy to maintain Easy to use and fix TECHNICAL PARAMETERS Hopper - Max feed size(mm) - 800 - Feed height(mm) - 3850 - Capacity (m³) - 6 - Vibrating feeder - Length x width（mm） - 4000 × 1250 - Power （KW） - 3.7kw × 2 - Feeding capacity (t/h) - 500 - Impact crusher - Impact crusher - 350I - Max feed size （mm） - 800 - Rotor size （mm） - Φ1300 × 1270 - Rotor speed（rpm） - 700 - Weight（t） - 19 - Power(kw) - 315 - Main Conveyor - Height(mm) - 3700 - Length x Width（mm） - 10100 × B1200 - Main Conveyor power(kw) - 15 - Receiving machine - Length × width (mm) - 2200 × 1170 - Power (KW) - 2.4kw × 2 - Post-screen - Length x Width（mm） - 4500 × 1500 - Power（KW） - 5.5kw × 2 - Transit Conveyor - Length x Width（mm） - 2000 × B500 - Power (kw) - 3 - Side conveyor(-B is equipped) - Length x Width（mm） - 6800 × B650 - Power (kw) - 5.5 - Recirculating Conveyor - Length x Width（mm） - 8600 × B650 - Power (kw) - 5.5 - Fines Belt - Length x Width（mm） - 6000 × B1000 - Power (kw) - 7.5 - Tail belt conveyor - Length x Width（mm） - 3050 × B500 - Power (kw) - 3 - Transport Dimensions (mm) - 15500 × 3500 × 3800 - Description： 1. The parameter in brackets is the onboard generator scheme. 2. Crusher processing capacity is related to stone hardness, feed size, and discharge size. 3. Basic configuration：manual control 、wireless remote control、Automatic feeding system. 4. Options：side conveyor belt 、iron remover 、water spraying system.
