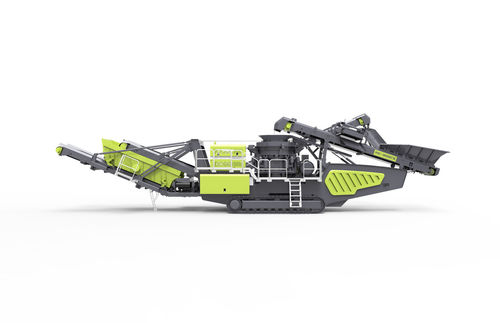

Cone crusher C3E

mobileelectric

Overview
The C3E mobile cone crusher is engineered for secondary and tertiary crushing of medium-hard rock and aggregates. It integrates the cone chamber with a mobile chassis for rapid deployment on quarry and construction sites.

Main features

• Optimized chamber design for consistent product shape and gradation
• Appropriate material grade and chamber profile for durable wear life
• Electric drive suitable for fixed-site or grid-connected operation
• Mobile chassis for road transport and on-site repositioning

Technical parameters

• Product Model: C3E
• Drive mode: Electric
• Total crushing power (kW): 313
• Engine power (kW): 118
• Feeding capacity (t/h): 400
• Input size max (mm): 210
• Feeding height (mm): 2800
• Crushing capacity (t/h): 150-420
• Overall weight (t): 56
• Transportation dimension (L×W×H/mm): 16500×3000×3700
• Working dimension (L×W×H/mm): 20000×4500×5200

Applications

• Quarries and aggregate production
• Mining operations for secondary/tertiary crushing
• Construction and demolition recycling
• Road and infrastructure projects requiring on-site crushing

Options and accessories

• Side discharge conveyors
• Magnetic separator / iron remover
• Control options: standard manual control; automated PLC/remote control available as option
• Customized wear parts for specific rock types

Notes

• Crushing capacity depends on material hardness, feed gradation and desired product size.
• Technical parameters are subject to change; final specifications confirmed at order.
