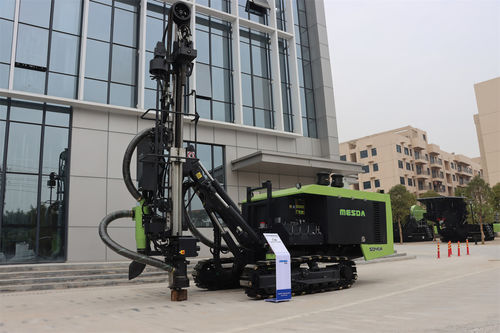

Core drilling drilling rig SD45A

rotarydown-the-hole

Simple mechanical structure. Amazing efficiency Efficient Pay attention to eco-friendly design Environment protection Low energy consumption Energy saving TECHNICAL PARAMETERS Engine - Engine brand - YUCHAI - YUCHAI Engine Model - 4DK - 4DK Emission - T3(CN) - T3(CN) Impactor - 3.5 / 4 / 5 inch - 0.44/0.55 inch Drill pipe - 76 × 3000mm - 76 × 3000mm Air consumption - 10-20 m3/min - 11-21 m3/min Working Wind pressure - 13-25 BAR - 12-24 BAR Specification - Rotation torque - 2200 N.m - 3300 N.m Maximum lifting - 38 kN - 31 kN Maximum thrust - 20 kN - 20 kN Propulsion method - Motor - Motor Propulsion - 3200 mm - 4140 mm length of thruster - 5430 mm - 5400 mm Propulsion compensation - 1200 mm - 1200 mm Grade ability - 25° - 30° Ground clearance - 450 mm - / Dust collector - Size - 12 / 14 m² - 16 m² Motor - 10 cc - 10 cc Description： 1. The parameter in brackets is the onboard generator scheme. 2. Crusher processing capacity is related to stone hardness, feed size, and discharge size. 3. Basic configuration：manual control 、wireless remote control、Automatic feeding system. 4. Options：side conveyor belt 、iron remover 、water spraying system.
