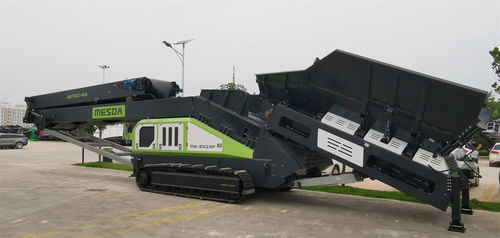

Belt conveyor MB-2010F

inclineddiesel enginefor the mining industry

Simple mechanical structure. Variable speed design Has two kind of speed,improving the utilization of equipment. Humanized design Has two kind of speed,improving the utilization of equipment. Easy to maintain Has two kind of speed,improving the utilization of equipment. TECHNICAL PARAMETERS hopper - Minimum feeding height(mm) - 1900 - Hopper volume (m3) - 10 - Apron feeder - Length x width (mm) - 4000 × 1000 - Power (kw) - 22 - Feed capacity (t/h) - 300 - Main conveyor - Discharge height (mm) - 8000 - Length x width (mm) - 20000 × 1000 - Main conveyor power (kw) - 22 - Whole machine - Engine power (kw) - 66 - engine model - YC4DK90-T304 - Total weight (t) - 24 - Working power (kw) - 44 - Transport dimension - 17400 × 2950 × 3900 - Work dimension - 25300 × 2950 × 8360 - Description： 1. The parameter in brackets is the onboard generator scheme. 2. Crusher processing capacity is related to stone hardness, feed size, and discharge size. 3. Basic configuration：manual control 、wireless remote control、Automatic feeding system. 4. Options：side conveyor belt 、iron remover 、water spraying system.
