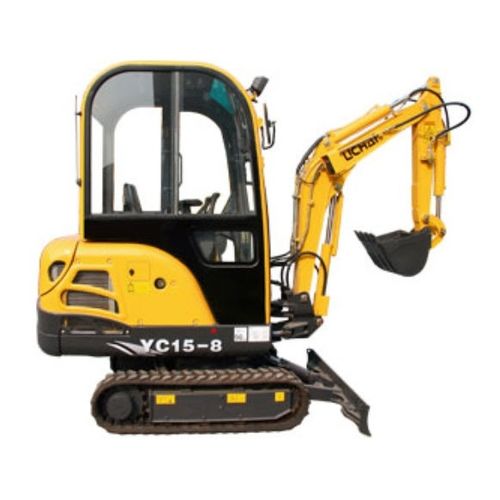

Mini-excavator YC15-8

crawlerdieselconstruction

YUCHAI YC15-8 Excavator Weight： 1625kg Canopy/1725kg Cabin（3582lbs Canopy/3803lbs Cabin） Rated power：14.7KW/2200rpm(19.7hp/2200rpm)(Perkins) 14.2KW/2200rpm(19.03hp/2200rpm)((Kubota) Standard bucket capacity：0.04m3（1.41cu.ft.） Standard bucket wide：400mm(1'4''in) Principle Dimension Overall Length (trans pos) - 3670mm Overall Height (trans pos) - 2245Canopy; 2310 Cabin Width of Undercarriage - 980mm Width Of Track - 230mm Length Of Track - 1405mm Dist. Between Undercarriage And Ground - 188mm Width Of Platform - 1010mm Dist. Between Platform And Ground - 414/453mm ext.chassis Maximum Platform Tail Turning Radius - 1193mm Dist. Between Boom And Ground - 1050mm Sprocket To Idler Centres - 1045mm Characteristic - Opération Hydraulic Pressure - 16Mpa(2320PSI) Maximum Digging Force - >11 KN (2474lbs) Maximum Gradeadility - >58%(30°) Travelling Speed - >2 km/h (1.2mph) Maximum traction - 8.8 KN (1979lbs) Swing Speed of Platform - 10~12rpm Variable displacement pump capacity - Fixed displacement pump capacity - 8.2+8.2+3.2ml/r(0.0018+0.0018+0.0007gallon/r) Swing Angularity of the Digging Arm(left/right) - 60748°
