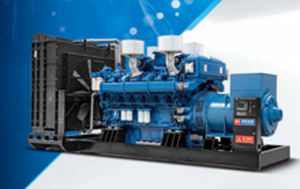

Diesel generator set YC16VCthree-phasestationary50 Hz
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Portability
- stationary
- Frequency
- 50 Hz
- Fuel System
- direct fuel injection
- Applications
- industrial
- Emissions level
- Stage III
- Power in kVA
2,250 kVA, 3,000 kVA, 3,125 kVA, 3,375 kVA, 3,750 kVA
(3,059.15 hp, 4,078.86 hp, 4,248.82 hp, 4,588.72 hp, 5,098.58 hp)- Rated capacity
Max.: 3,000 kW
(4,078.9 hp)Min.: 1,800 kW
(2,447.3 hp)- Voltage
400 V
- Rotational speed
1,500 rpm
(9,425 rad.min-1)- Length
6,500 mm
(256 in)- Width
2,800 mm
(110.2 in)- Height
3,200 mm
(125.98 in)- Weight
Max.: 22,500 kg
(49,604.01 lb)Min.: 17,600 kg
(38,801.36 lb)
Description
Product overview
YC16VC series diesel generator sets by YUCHAI, delivering prime outputs from 1800 kW (2250 kVA) to 3000 kW (3750 kVA), suitable for industrial prime and standby power applications at 50 Hz.
Technical parameters
Engine
Key specifications
YC16VC series diesel generator sets by YUCHAI, delivering prime outputs from 1800 kW (2250 kVA) to 3000 kW (3750 kVA), suitable for industrial prime and standby power applications at 50 Hz.
Technical parameters
- Genset models: YC1800GF | YC2000GF | YC2200GF | YC2400GF | YC2500GF | YC2700GF | YC3000GF
- Prime power (kW/kVA): 1800/2250 | 2000/2500 | 2200/2750 | 2400/3000 | 2500/3125 | 2700/3375 | 3000/3750
- Standby power (kW/kVA): 2000/2500 | 2200/2750 | 2420/3025 | 2640/3300 | 2750/3440 | 2970/3712 | 3300/4125
- Rated voltage: 400/230 V; Frequency: 50 Hz; Power factor: 0.8
- Rated currents: 3270 A | 3608.5 A | 3969.4 A | 4330.3 A | 4520 A | 4895 A | 5400 A
- Frequency and voltage performance: frequency drop ≤2%; steady-state band ≤0.5%; transient frequency deviation ≤+10% (100% sudden load reduction); recovery time ≤3 s; steady-state voltage deviation ±1%; transient voltage deviation ≤+20% (100% sudden reduction); voltage recovery ≤3 s; voltage unbalance ≤1%
- Genset dimensions (L×W×H): 6500×2800×3200 mm; weights by model from ~17600 kg to ~22500 kg
Engine
- Engine models: YC16VC3000-D31 | YC16VC3300-D31 | YC16VC3600-D31 | YC16VC4000-D31 | YC16VC4200-D30 | YC16VC4500-D30 | YC16VC4900-D30
- Prime engine power (kW): 2005 | 2205 | 2405 | 2673 | 2808 | 3010 | 3280
- Standby engine power (kW): 2206 | 2405 | 2646 | 2940 | 3089 | 3311 | 3608
- Manufacturer: YUCHAI
- Configuration: 16-cylinder V, four-stroke, turbocharged & intercooled; speed 1500 r/min
- Bore × stroke: 200 × 210 mm; Displacement: 105.56 L; Emission: non-road Stage III
- Fuel system: EUP or HPCR depending on variant
Key specifications
- Series: YC16VC
- Prime genset power range: 1800–3000 kW (2250–3750 kVA)
- Standby genset power range: 2000–3300 kW (2500–4125 kVA)
- Rated voltage/frequency: 400/230 V, 50 Hz; power factor 0.8
- High-current output: up to 5400 A depending on model
- 16-cylinder V engine with turbocharging and intercooling
- Genset footprint: 6500×2800×3200 mm
- Designed for rapid frequency and voltage recovery under transient loads
