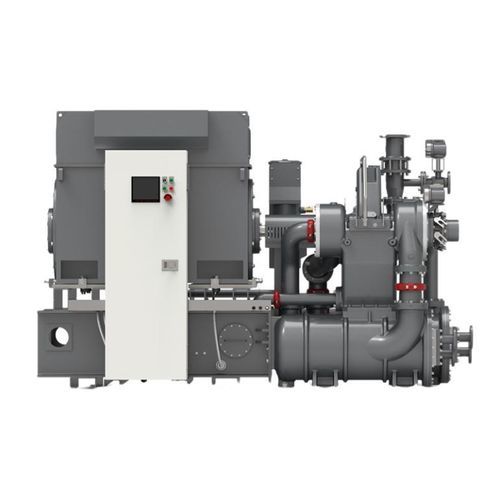

Centrifugal compressor AHCairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-free
- Application domain
- industrial, for medical applications, for food applications, for chemical applications, for heavy-duty applications, for agricultural applications
- Applications
- for automobiles, for packaging, for medical devices
- Voltage
- 400 V, 380 V, 220 V, 230 V
- Other characteristics
- compact, high-efficiency, high-pressure, high-performance, heavy-duty, single-stage, multi-stage
- Pressure
Max.: 250 bar
(3,625.94 psi)Min.: 6 bar
(87.02 psi)- Flow
Max.: 3,000 m³/min
(105,944 ft³/min)Min.: 25 m³/min
(882.87 ft³/min)- Power
Max.: 20,000 kW
(27,192.42 hp)Min.: 132 kW
(179.47 hp)- Length
Max.: 14,200 mm
(559.06 in)Min.: 2,650 mm
(104.33 in)- Width
Max.: 5,350 mm
(210.63 in)Min.: 1,650 mm
(64.96 in)- Height
Max.: 5,350 mm
(210.63 in)Min.: 1,850 mm
(72.83 in)
Description
- Advanced Oil Free Technology With High Efficiency Impellers: This system utilizes aviation grade titanium alloy impellers with a backward curved design for superior aerodynamic efficiency. Certified to ISO eight five seven three point one Class zero standards, it provides one hundred percent oil free compressed air, making it perfect for industries with strict purity requirements. The five axis precision machining ensures the ternary flow design handles large air volumes with minimal flow loss, while the tilting pad bearings offer exceptional stability at critical speeds for continuous industrial performance.
- Intelligent Control System For Stable Pressure Management: The integrated inlet guide vane allows for smooth and stepless air flow adjustment from zero to one hundred percent, providing seven to nine percent higher efficiency than standard butterfly valves. Controlled by a high performance Siemens PLC system with a seven inch touch screen, the unit features advanced anti surge functions and real time parameter monitoring. The high reliability labyrinth seal design eliminates the need for external sealing gas, resulting in tiny air leakage and a longer service life for your critical operations.
- Robust Modular Construction Using Premium Industrial Materials: Built with a high grade stainless steel diaphragm coupling and an integral welding tank for the lubrication system, this equipment is engineered for heavy duty durability. Models range from units with a power of one hundred thirty two kilowatts to massive industrial systems reaching twenty thousand kilowatts. With air flow ranges covering twenty five to three thousand cubic meters per minute and pressures up to twenty five barg, these units are designed to handle massive loads. The modular assembly design facilitates easier transport and simplifies integration into your existing facility infrastructure.
- Versatile Industrial Performance Across Diverse Global Sectors: This high capacity solution is perfectly suited for the chemical industry, automotive manufacturing, and pharmaceutical sectors where clean and stable air is vital. The straight tube cooler design is easy to maintain without core pulling, saving up to ninety percent of maintenance time. Its low vibration and quiet operation provide a superior user experience in aerospace wind tunnels and food processing plants. The intuitive interface and automatic dual control modes allow facility managers to adjust gas volume effortlessly, ensuring reliable performance in both small and large scale projects.
- Simplified Maintenance Design With Technical Resource Access: Each system is supplied with a comprehensive digital operation manual and technical data sheets to assist your staff during setup and routine inspections. The horizontally split gearbox structure allows for convenient maintenance by simply lifting the upper cover, while the maintenance free disc coupling requires no lubrication. We provide access to technical guidance for your control system through various digital channels. This user centric design focuses on maximizing uptime and reducing daily operational complexity, supported by an extensive network of industrial expertise available for your engineering team.
