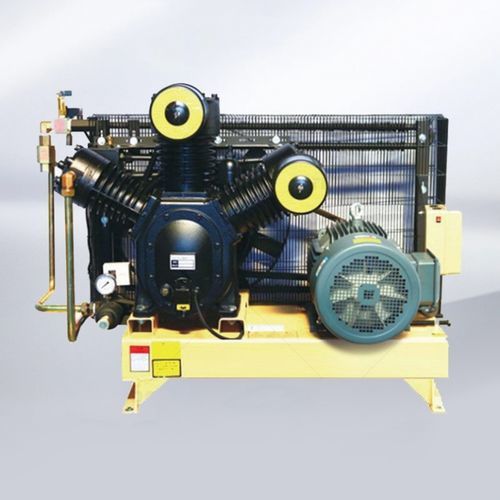

Air compressor unit AWHpistonhigh-pressurestationary
Add to favorites
Compare this product
Characteristics
- Applications
- air
- Type
- piston
- Other characteristics
- stationary, multi-stage, high-pressure, positive pressure
- Pressure
Min.: 30 bar
(435.1 psi)Max.: 40 bar
(580.2 psi)- Flow rate
Min.: 1 m³/min
(35.31 ft³/min)Max.: 32 m³/min
(1,130.07 ft³/min)- Power
Min.: 11 kW
(14.96 hp)Max.: 30 kW
(40.79 hp)
Description
- High Pressure Booster Piston Air Compressor 30 Bar 40 Bar For PET Bottle Blowing, Nitrogen Boosting And Gas Cylinder Filling. Two-Stage Or Three-Stage Booster Compressor Delivering Stable Ultra-High Pressure Output From 30 Bar To 40 Bar (435 Psi To 580 Psi), Accepts Low-Pressure Inlet Air From 7 Bar To 13 Bar Rotary Screw Compressors And Boosts Output To A Stable 30 Bar Or 40 Bar Working Pressure Continuously
- Multi-Stage Compression Technology With Intercooling System Maintains Stable 30-40 Bar Output Pressure. Advanced Two-Stage Or Three-Stage Piston Compression With Inter-Stage Water Cooling Or Air Cooling Intercoolers Reduces Discharge Temperature By Over 40 Percent Compared To Single-Stage Boosters, Ensuring Consistent Quality For PET Preform Blowing And High-Pressure Pneumatic Cylinder Applications.
- 30 Bar, 40 Bar Working Pressure Across Power Ranges From 7.5Kw To 90Kw (10Hp To 120Hp), Delivering Airflow From 0.5M³ Per Minute To 32M³ Per Minute At 30 To 40 Bar Output. Complying With Pressure Vessel Safety Standards And CE Certification Requirements For Global Export.
- Widely Used In PET Bottle Blowing Plants Oxygen And Nitrogen Cylinder Filling Stations Across Southeast Asia And South America, North America, Europe, Middle East And Africa. Compact Footprint With Integrated Skid-Mounted Frame And Vibration Isolation Mounts Enables Installation In Existing Compressor Rooms Alongside Low-Pressure Rotary Screw Air Compressor Systems Without Major Civil Works Or Facility Modifications.
- Factory Direct High Pressure Booster Compressor With Spare Valve And Piston Kit Included For Easy Servicing. Offering Competitive Pricing On 30 Bar And 40 Bar Booster Compressor Systems In Water-Cooled And Air-Cooled Configurations. Multilingual Technical Manuals, Pressure Testing Certificates, And Video Installation Guides Provided. Technical Team Supports Remote Diagnostics And Valve Replacement Guidance For Buyers In Over 100 Countries.
VIDEO
