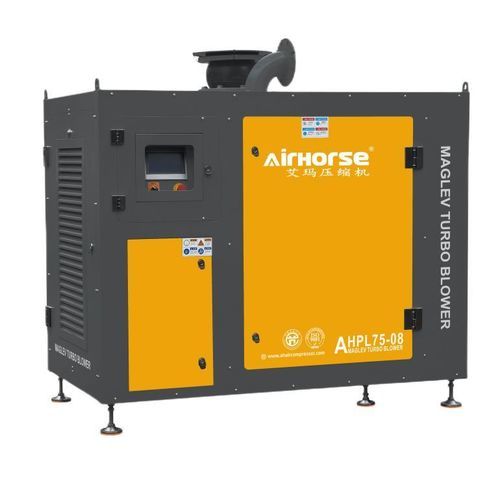

Air blower AHCPLcentrifugaltwo-stagecooling
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- centrifugal
- Number of stages
- two-stage
- Applications
- for vacuum, cooling, conveying, for slurries, chemical process, drying, for food applications, for machines, for chemicals, furnace, fiberglass, for granulates, for extrusion lines, for the steel industry, for the textile industry, electric power industry, centrifuge, precision, for abrasive products, for the petrochemical industry, for dairy products, for boiler, for pharmaceutical products, for packaging, for food, combustion, for wastewater treatment, heavy-duty, for medical devices, for the cement industry, sewage treatment
- Voltage / frequency
- 220 V / 50 Hz, 380 v / 50 Hz, 380 v / 60 Hz, 220 v / 60 Hz, 230V / 50Hz, 400 V / 50 Hz, 230V / 60Hz
- Norms
- UL, IEC 60034-1
- Energy class
- IE4
- Other characteristics
- oil-free, high-speed, three-phase, variable-speed, on magnetic bearing
- Flow
Min.: 5 m³/min
(176.573 ft³/min)Max.: 400 m³/min
(14,125.867 ft³/min)- Operating pressure
Min.: 40 Pa
(0.006 psi)Max.: 120 Pa
(0.017 psi)- Nominal power
Min.: 7.5 kW
(10.197 hp)Max.: 300 kW
(407.886 hp)- Sound level
Min.: 68 dB
Max.: 80 dB
- Weight
Min.: 350 kg
(771.62 lb)Max.: 1,600 kg
(3,527.4 lb)- Length
Min.: 1,770 mm
(69.69 in)Max.: 2,600 mm
(102.36 in)- Depth
Min.: 760 mm
(29.9 in)Max.: 1,226 mm
(48.3 in)- Height
Min.: 1,590 mm
(62.6 in)Max.: 2,660 mm
(104.7 in)
Description
- Versatile Industrial Application For Clean Environments: Full Range Coverage From 10hp To 400hp (7.5kW To 300kW) Air Flow From 5m³/min To 400m³/min, Pressure 40 Kpa To 120Kpa. Perfectly suited for wastewater treatment, food and drug processing, and semiconductor manufacturing where one hundred percent oil free air is mandatory. The completely oil free design prevents product contamination and simplifies environmental compliance for your facility. Industrial users in brewing, biopharmaceuticals, and textile printing benefit from the consistent air purity and low vibration levels, ensuring long term equipment stability and high quality output.
- Innovative Air Suspension Bearing For Ultra High Efficiency: This technology uses a high speed air film instead of traditional oil lubrication to support the rotating shaft. With no physical contact during operation, mechanical friction is eliminated, leading to energy savings of up to thirty percent compared to conventional Roots blowers. The permanent magnet synchronous motor achieves over ninety five percent efficiency, significantly reducing operational electricity costs and providing a sustainable solution for heavy duty industrial air supply.
- Advanced Two Stage Compression With Original Air Cooling System: For applications requiring pressure between one point two and four kilograms, our unique two stage compression design ensures stable performance and higher volumetric efficiency. The dual stage internal air cooling structure keeps the motor stator and critical parts at optimal temperatures without needing external cooling fans. This integrated approach guarantees consistent airflow even in high temperature environments, enhancing overall system reliability and performance.
- Precision Engineered Aviation Aluminum Alloy Impeller: Every unit features a high strength aviation grade aluminum impeller machined to a precision of zero point zero一 millimeters. This exceptional accuracy ensures maximum aerodynamic performance and resistance to wear or deformation under high speed rotation. The lightweight yet robust material allows for rapid response to demand changes while maintaining a silent operating level below sixty eight decibels, creating a much better working environment for your staff.
- Zero Maintenance Design With Rapid Investment Return: Because the system requires no lubricating oil or routine mechanical part replacements, maintenance costs are reduced by over sixty percent compared to traditional blowers. Most users achieve a full return on investment within twelve months through energy savings alone. The compact plug and play layout allows for quick setup and integration into existing systems. We provide comprehensive digital manuals and technical data access to ensure your staff can manage the system with ease.
