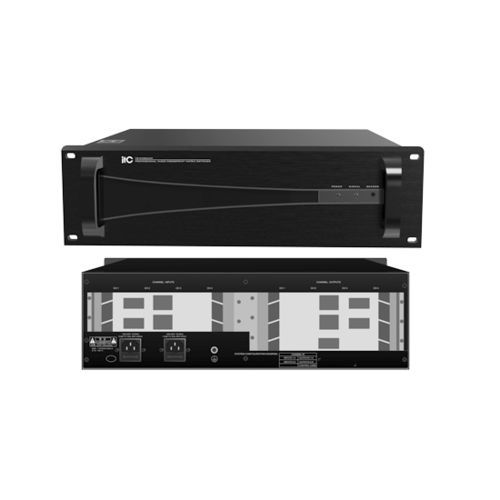

Video switch matrix TS-9408UHM

analogdigitalflexible

Hybrid seamless matrix network switcher is a flexible matrix signal network switcher. With high-performance hardware design, it perfectly supports various HD digital/analog signal switching processing. It provides a one-stop solution for various video and control signal distribution/switching/processes in various industries, which can be widely used in broadcast and television projects, multimedia conference halls, LED video wall projects, TV teaching, command centers and other places. Feature: * The modular matrix controller that can be configured with input/output signal boards supports 8×8 signal switching. * Support any input/output signal board of HDMI, DVI, VGA, SDI, HD BaseT, optical fiber to improve the flexibility of the system, in which the DVI input board is compatible with CVBS, YUV, S-VIDEO signals, VGA input/output boards are compatible with CVBS, YUV, S-VIDEO. * By custom configuration of various types of the same or different input and output boards, it can form a single-interface or multi-interface matrix, such as HDMI matrix, DVI matrix, VGA matrix, YUV matrix, Video matrix and so on. * Support maximum resolution up to 3840x2160 30Hz. * Support seamless switching function. There is no black screen during switching. * Flexible control mode. Support1-channel RS-232, 1-channel RS-485, 1-channel network port, external panel control interface. * Support synchronous switching of audiovisual signals, fast switching response speed.
