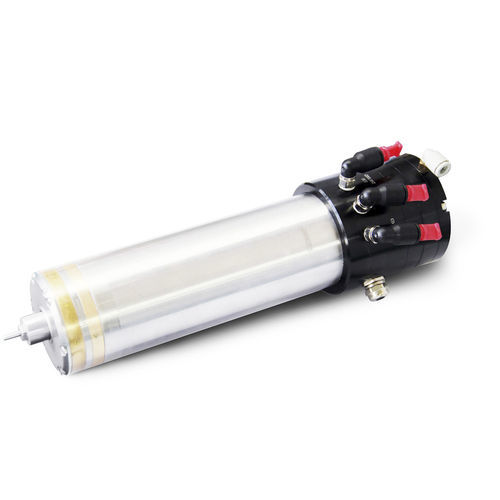

Machining motor spindle DQFX-06280/1.2-DPWS

universalformingmotorized

This spindle is a universal air bearinghigh-speed spindle for forming machine with a maximum speed of 80,000rpm and amaximum power of 1.5kW. It is mainly used for PCB forming. It has two forming advantages, namely low-speedforming and high-speed forming. Its low-speed forming capacity is equivalent tothat of the ball-type spindle with the same power. Under special circumstances,this spindle is also suitable for gloss machining of materials such as metal(aluminum and its alloy, copper and its alloy), non-metal (acrylic materials),etc. Performance features 1.High precision: In the PCB industry, the staticrotary accuracy of the motorized spindle is ≤0.002mm and the dynamic accuracyis ≤0.006mm (delivery standard), so it has a feature of unparalleled highprecision, achieving the forming capacity with higher precision. 2.High power and high torque output: The built-inmotor is designed based on the consideration of the characteristics of thedriver performance. It is built-in with a three-phase variable frequencyasynchronous efficient motor so that its output power, torque and machiningcapacity are greatly improved. 3.High configuration: Motorized spindles for thisindustry all have the automatic cutter change function; they are also equippedwith the motor temperature sensors. 4.High energy-saving: Under the premise ofensuring performance, its minimized air consumption helps to reduce operationcost of the end-user. 5.Strong compatibility and good expansibility: Motorizedspindles for the PCB industry have good compatibility, which can be widely usedfor various kinds of drilling machines and forming machines in the circuitboard industry.
