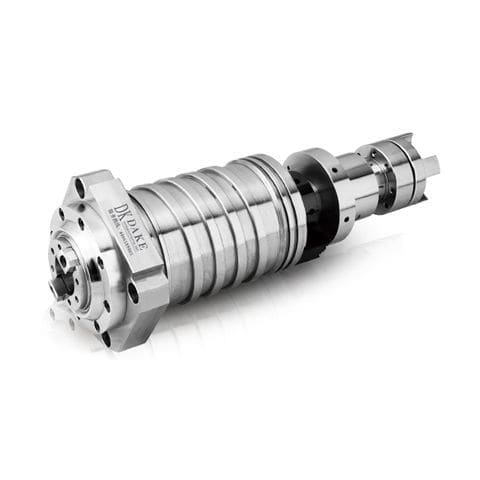

Cutting motor spindle DGZZ-10024

machiningmotorizedBT 30

This product is a high-speed mechanical type straight spindle. The connection shanktype for the spindle is BT30. Its maximum speed is 24,000rpm. This product of innovative patented structure can effectively control thetemperature rise of the spindle, without need of the oil cooler. The front-endlabyrinth seal structure after simulation analysis and optimization, and tinypores evenly distributed, which can effectively prevent the cutting fluid andmachining debris from entering. At the same time, the innovative seal withdynamic pressure effect can also revolutionarily improve the waterproofperformance of the spindle. Thanksto its advantages of superior precision, dynamic and static rigidity, lowvibration and low noise, the stability, reliability and service life of thisspindle are greatly improved. 1.Highprecision: The yaw of the core taper hole is ≤0.002mm/s; the run-out at the300mm position of the standard rod is ≤0.008; the dynamic balancing grade isG0.4; so it is characterized with unparallel high precision 2.Highconfiguration: With the bearing of an international well-known brand and partsof high standards, it can ensure the long-term stability and reliability of thespindle. The spindle is aligned with the drive motor through a coupling toachieve synchronous transmission. 3.Lownoise: Under the same operational conditions, its noise at the maximum speed isabout 5DB lower than that of the straight type coupling of national standard.It can provide clients with better machining performance and healthy workingenvironment. 4.Diversityof shanks: Shank interface types such as ISO, BT, HSK, etc. can meet differentapplication needs of customers.
