Grinding spindle head DYFJM-180

Product overview
This DYFJM-180(100)20/15A2-F configuration raises maximum speed to 2,500 rpm while retaining a 100 mm internal mounting bore. Its balanced axial and radial static stiffness makes it a versatile spindle for cylindrical grinding, offering a different performance profile than the lower-runout 110 mm journal variant.

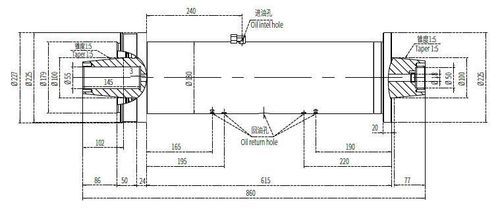

Key dimensions
Diameter: Φ180 mm
Internal mounting bore: 100 mm
Weight (approx): 200 ±5 kg
Rated speed: 1900 rpm
Maximum speed: 2500 rpm
Drive type: Belt drive
Rotation direction: Clockwise

Technical data
Installation outside diameter (mm): Φ180 / Φ100
Journal diameter: -
Drive oil type: ISO VG3
Oil supply pressure (MPa): 2.0-2.5
Axial static stiffness (N/μm): ≥200
Radial static stiffness (N/μm): ≥200
Front end radial runout (mm): ≤0.001
Axial end movement (mm): ≤0.001
Rotation precision (mm): ≤0.0003
Rated speed (rpm): 1900
Maximum speed (rpm): 2500

Application
Used for cylindrical grinding machines where balanced stiffness, low radial runout and high rotational precision are required.

Features / technical specifications

• Model: DYFJM-180(100)20/15A2-F
• Installation outside diameter (mm): Φ180 / Φ100
• Internal mounting bore: 100 mm
• Journal diameter: -
• Drive type: Belt drive
• Drive oil type: ISO VG3
• Oil supply pressure (MPa): 2.0-2.5
• Axial static stiffness (N/μm): ≥200
• Radial static stiffness (N/μm): ≥200
• Front end radial runout (mm): ≤0.001
• Axial end movement (mm): ≤0.001
• Rotation precision (mm): ≤0.0003
• Rated speed (rpm): 1900
• Maximum speed (rpm): 2500
• Rotation direction: Clockwise
• Application area: Cylindrical grinding machines
• Weight (kg): 200 ±5
