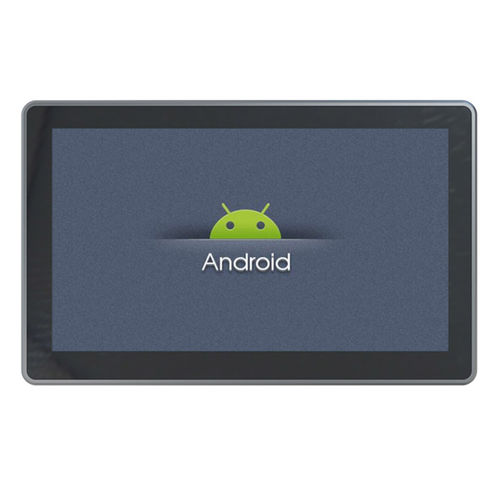

LCD panel PC WAR-156C-SM20

capacitive touch screenLED backlight15.6"

15.6 inch Android industrial panel computer Product model WAR-156C-SM20 Basic parameters : 1. CPU:Octa-core Cortex®-A53 architecture ,frequency 1.4GHz 2. Memory:2GB DDR3 3. Flash:8GB NandFlash Display screen : 1. Size:15.6 inch 2. Resolution:1920×1080 3. Wide-temperature type,262k colors or 18 true colors 4. LED backlight:lifetime > 25000 hour Touch screen : Capacitance touch screen Hardware interface : 1. 2 channel 3-wire RS-232 serial port(COM3,COM4). 2. 2 channel RS-485(COM1,COM2) . 3. 1 channel CAN bus interface.(optional). 4. 1 channel USB device interface, support ADB connect to PC to exchange data and debug application. 5. 2 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc. 6. 1 channel 100M Ethernet interface. 7. 1 channel SD/MMC slot, support TF /SD card. 8. 1 channel power adapter interface (DC12V~24V) . 9. 1 channel external WIFI interface (optional). 10. Built-in WIFI , Bluetooth (optional). OS : Android 5.1 Defend degree : IP65 (front panel) Working Environment : 1. power:DC 12V-24V (24V as recommendation) 2. working Temperature:0~50ºC 3. storage temperature:0~60ºC 4. working humidity:10~90%RH Size : 1. shell structure: Metal 2. panel size:398.35×248.35×45.9 (mm) Application area : 1. industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application. 2. Support CAN bus network deployment. oftware support : 1. Support Eclipse,Android Studio,QT Creator,Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc . 2. Easy change the user-defined splash screen.
