Platform lift
basketfor bodyworkspray booth

platform lift
platform lift
platform lift
platform lift
platform lift
platform lift
Add to favorites
Compare this product


Characteristics

Type
platform
Product applications
basket, for bodywork, spray booth
Other characteristics
vertical
Carrying capacity

300 kg (661.4 lb)

Lifting height

Min.: 550 m (1804'05")

Max.: 3,000 m (9842'06")

Description

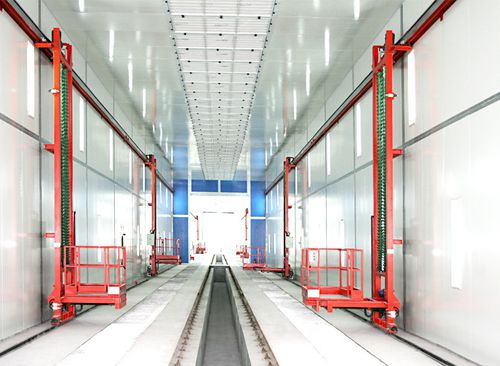

INDUSTRIAL 3 AXIS PLATFORM LIFT YOKISTAR 3-Axis Movement Platforms are designed and manufactured for a more convenient and efficient operation in spray booths, where quick and safe access in the height is essential. 3 axis, horizontal movement (X-axis) of the personnel lift, vertical movement (Z-axis) of the basket, and the movement in and out of the basket (Y-axis), all can be easily reached by versatile YOKISTAR 3-Axis Movement Platforms. It can be tailored according to different sizes of spray booths. Numerous personnel lifts real cases and multiple attainable modifications make its a perfect match of your spray booth. Horizontal Movement (X-axis) Travel Rate: 8 meters per minute Travel Distance: 20,000mm Drive Mechanism: 0.75kw anti-explosion motor(explosion-proof grade: EXDIIBT4), reduction gear Horizontal Control: button control in the front of the guard Vertical Movement (Z-axis) Travel Rate: 5 meters per minute Working Area: 550mm~3,000mm from floor Drive Mechanism: 1.5kw anti-explosion motor (explosion-proof grade: EXDIIBT4), reduction gear, sprocket, chain, shaft, bearing seat, scroll wheel shield Vertical Control: button control in the front of the guard Extended Movement (Y-axis) Travel Rate: 3 meters per minute Extended Distance: 500mm Drive Mechanism: 0.55kw anti-explosion motor (explosion-proof grade: EXDIIBT4), screw, sprocket, chain, shield Extended Control: button control in the front of the guard
