- Guangzhou YuBen Hydraulic Technology Co., Ltd.

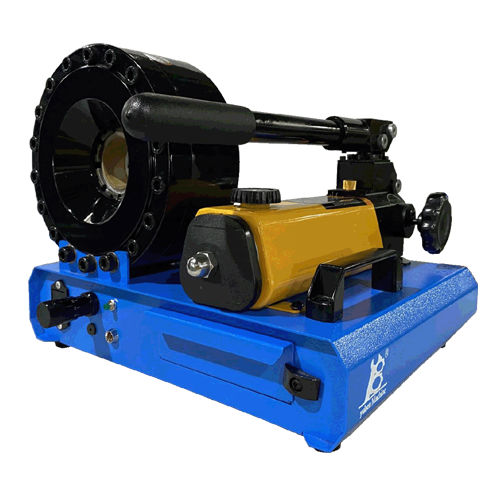

Hose crimping machine YB-P18HPmanualhydrauliccompact
Add to favorites
Compare this product
Characteristics
- Product handled
- for hoses
- Operational mode
- manual
- Drive type
- hydraulic
- Other characteristics
- compact, portable
- Crimping force
955 kN
- Crimping capacity
Max.: 54 mm
(2.1 in)Min.: 10 mm
(0.4 in)- Weight
45 kg
(99.21 lb)
Description
P18HP hose-crimping machine has been designed to crimp up to 1”diameter4-spiral hoses. It is hand pump operated hydraulic crimping machine for repair workshops andfield use. Easy to use, light and compact in size, allowing to be carried to any location.
Hose size ID (inches) - 1*4sp
Dies set series - P18
Max. opening (mm) - +20
Max.opening without dies (mm) - 68
Master die D / L (mm) - 48/64
Master die D / L (inches) - 1.89/2.52
Motor Power - Hand pump
Machine (mm) - 430X450X320
Machine (inch) - 16.9X17.7X12.6
Package (mm) - 625X505X510
Package (inch) - 24.6X19.9X20.1
Catalogs
YB-P18HP
1 Pages
