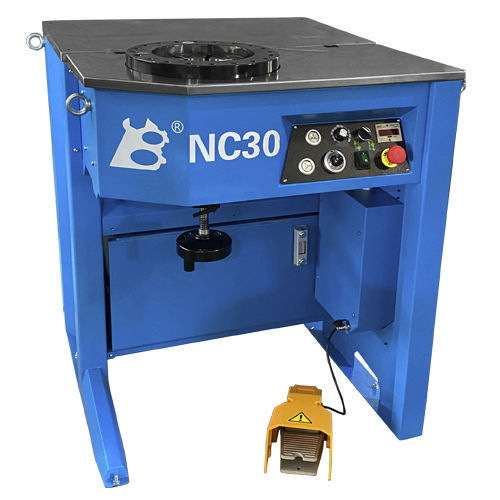

Automatic crimping machine YB-NC30helectro-hydraulic
Add to favorites
Compare this product
Characteristics
- Operational mode
- automatic
- Drive type
- electro-hydraulic
- Crimping force
660 kN
- Crimping capacity
Min.: 12 mm
(0.5 in)Max.: 63 mm
(2.5 in)- Power
4 kW
(5.44 hp)- Voltage
Min.: 200 V
Max.: 440 V
Description
YUBEN NC machine provide fast and accurate crimping for fitting manufacturing.Crimping range is 12-63 mm.
Cycle time 10 mm (s) Tri/Mono - 1.4
Hose size ID (inches) - 2
Dies set series - NC30
Max. opening (mm) - +26
Max.opening without dies (mm) - 125
Master die D / L (mm) - 99/35
Master die D / L (inches) - 3.90/1.38
Oil tank volume (L) - 50
